    Products
    • Welded Wire Euro Fence Panel1830mm.webp
      Green
    • Welded Wire Euro Fence Panel1830mm.webp
      Grey

    WELDED WIRE EURO FENCE PANEL WIDTH 250CM & HEIGHT 183CM

    Square posts
    Width: 2500mm and Height: 1830mm
    Technical Method : Galvanized with powder coating Finish
    Package : Carton or Pallet, according to customers’ request
    Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

    Welded Wire Euro Fence Panel1830mm.webp1
    Welded Wire Euro Fence Panel1830mm.webp2
    Welded Wire Euro Fence Panel1830mm.webp3
    Welded Wire Euro Fence Panel1830mm.webp4
    • Technical
    • Description
    • Technical Parameters
    • Assembly
    • Client's Feedback
    TECHNICAL DATA
    • RAL
      6005 /9005
    • Material
      Galvanized steel and Powder Coating
    • Mesh size
      50x200mm
    • Mesh Wire Diameter
      5.0mm
    • Panel Width
      2500mm
    • Panel Height
       1830mm
    • V no.
      3
    • V Distance
      100mm
    • Suitable Post Height
      2370mm
    • Post Diameter
      60x60mm
    • Post Thickness
      1.5mm
    • Full Size
      2500x1830mm
    • Package
      Carton or Pallet
    •

    •
    •



    DESCRIPTION
    • Square posts
    • Width: 2500mm and Height: 1830mm
    • Technical Method : Galvanized with powder coating Finish
    • Package : Carton or Pallet, according to customers’ request
    • Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

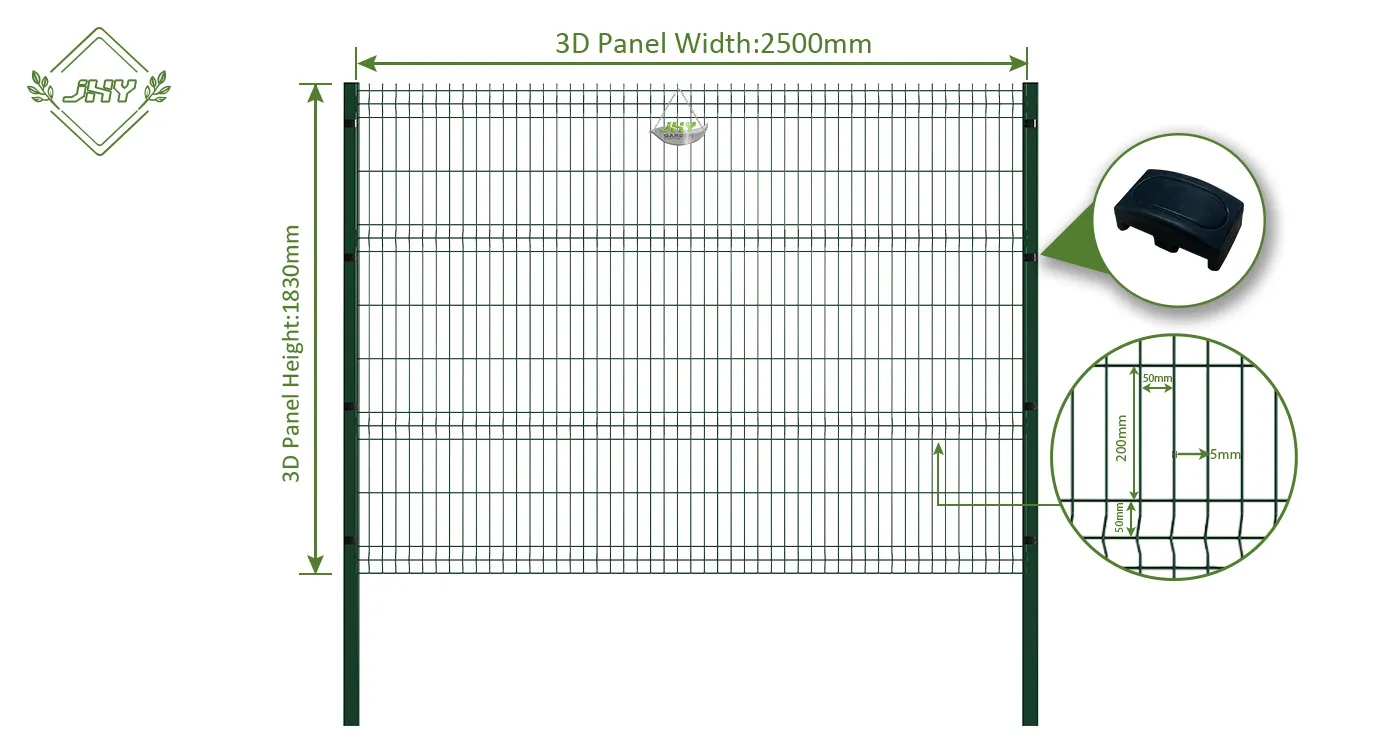

    TECHNICAL DIAGRAM







    ABOUT OUR PRODUCTS



    Welded Wire Euro Fence Panel is made by 4.0mm or 5.0mm galvanized wire with apertures of 200mm x 50mm and some V profiles. JHY can supply galvanized Welded Wire Euro Fence Panel and powder Welded Wire Euro Fence Panel. You can choose green, grey, brown, red, black, Etc. For Welded Wire Euro Fence Panel, you are choosing galvanized before or galvanized after. It is mainly used as a low-level security fence at rural locations, such as your front yard, back garden yard, or somewhere else you need a demarcation. The main differences between different Welded Wire Euro Fence Panel styles are the mesh size and wire diameter. We can produce 4 on 4, 4 on 5 or 5 on 5, which means the different horizontal and vertical wire diameters. The thickness of the wire diameter can determine the strength of the Welded Wire Euro Fence Panel. The mesh size also can impact the power. The smaller the mesh size, the more robust the Welded Wire Euro Fence Panel. You can choose the different mesh styles according to your specific purpose.





    OUR WORKSHOP
    Panels Workshop.webp
