    Mesh Gates

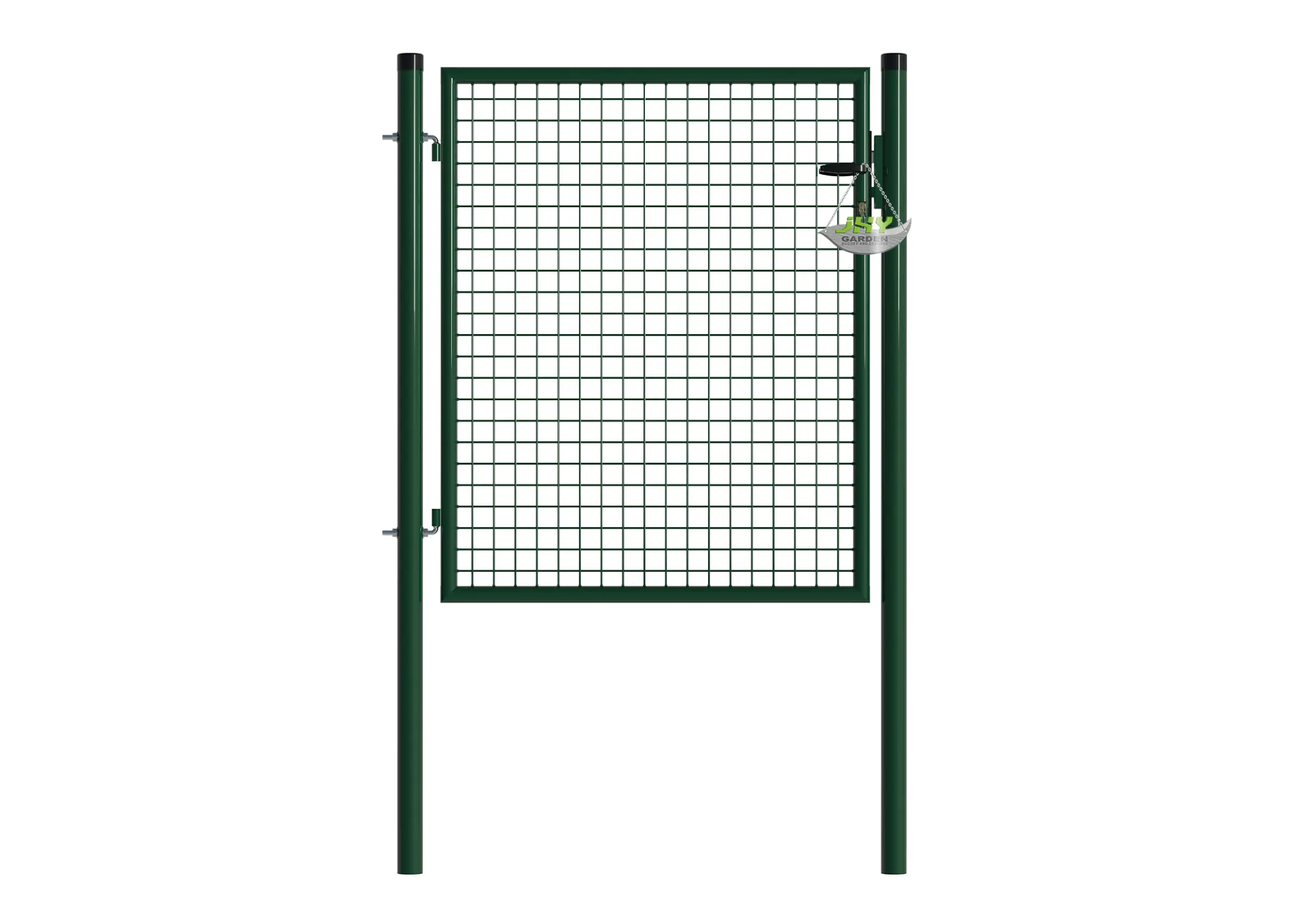

    • Mesh Fence Garden Gate 1000×1250mm.webp1
      Grey
    • Mesh Fence Garden Gate 1000×1250mm.webp1
      Green

    MESH FENCE GARDEN GATES WIDTH 100CM & HEIGHT 125CM GREEN & GREY SQUARE POST & FRAME

    Round posts and frame

    Width: 100 cm and Height: 125cm

    Technical Method : Galvanized with powder coating Finish

    Package : Carton or Pallet, according to customers’ request

    Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

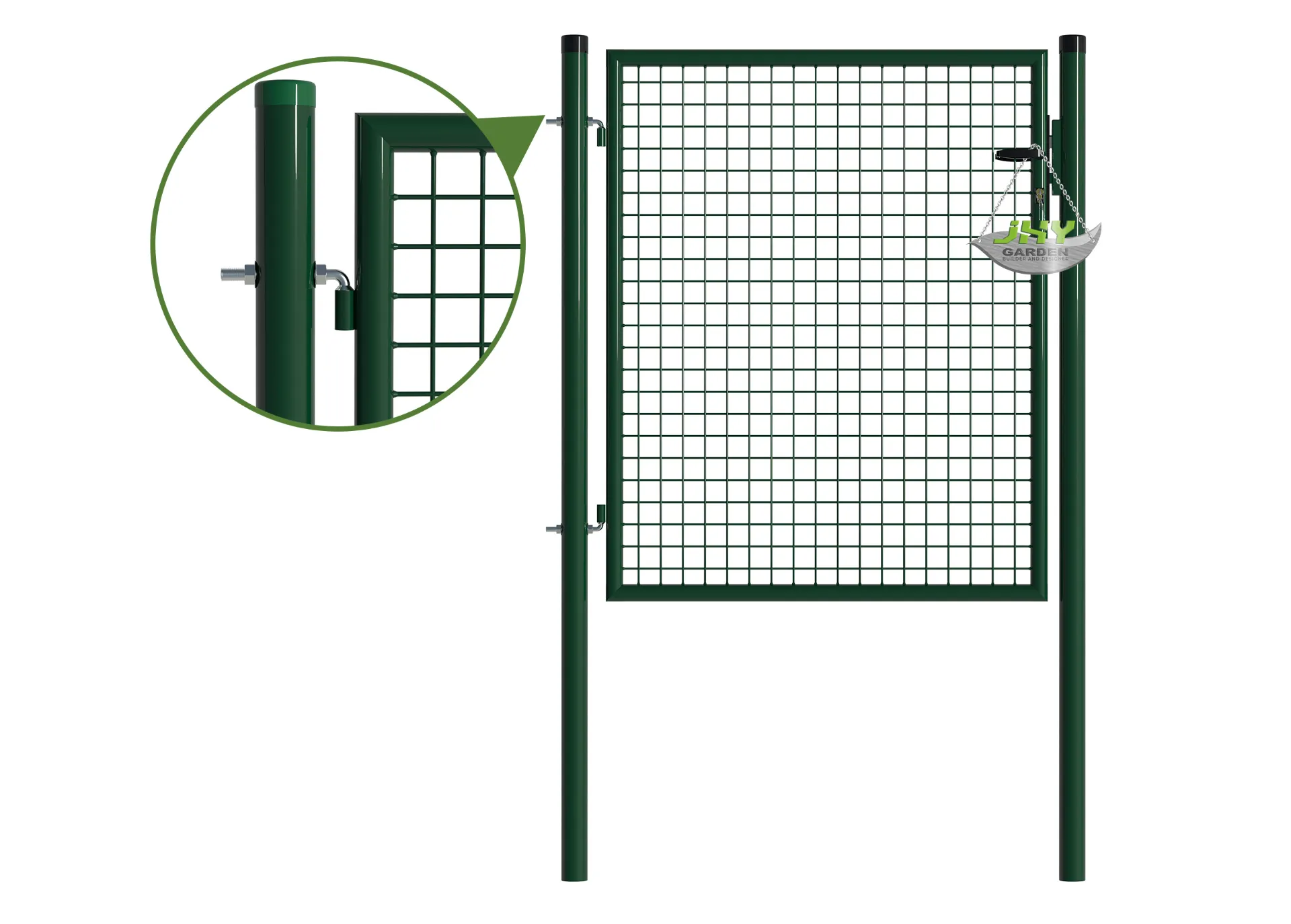

    Mesh Fence Garden Gate 1000×1250mm  hinge.webp1

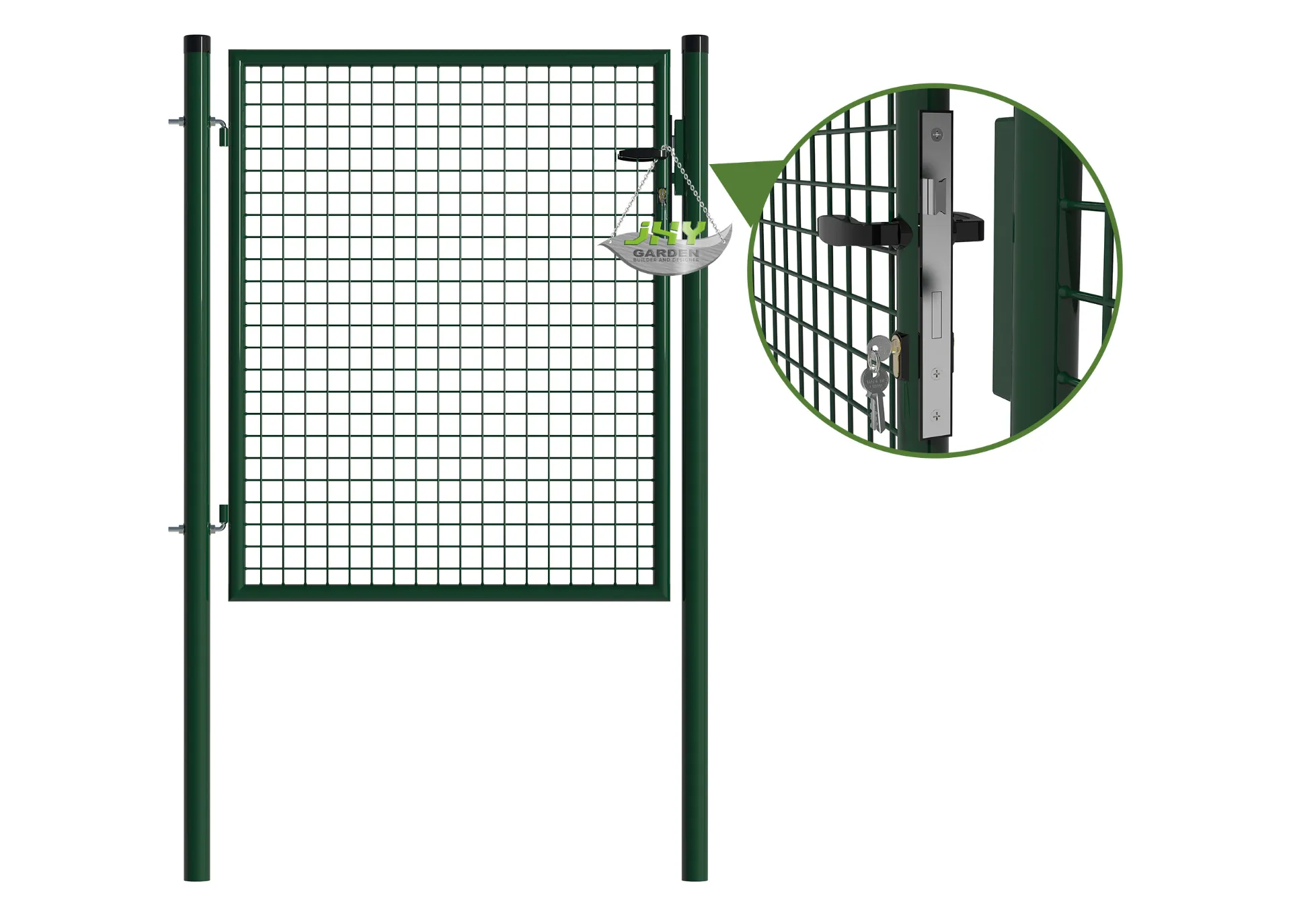

    Mesh Fence Garden Gate 1000×1250mm lock inside.webp1

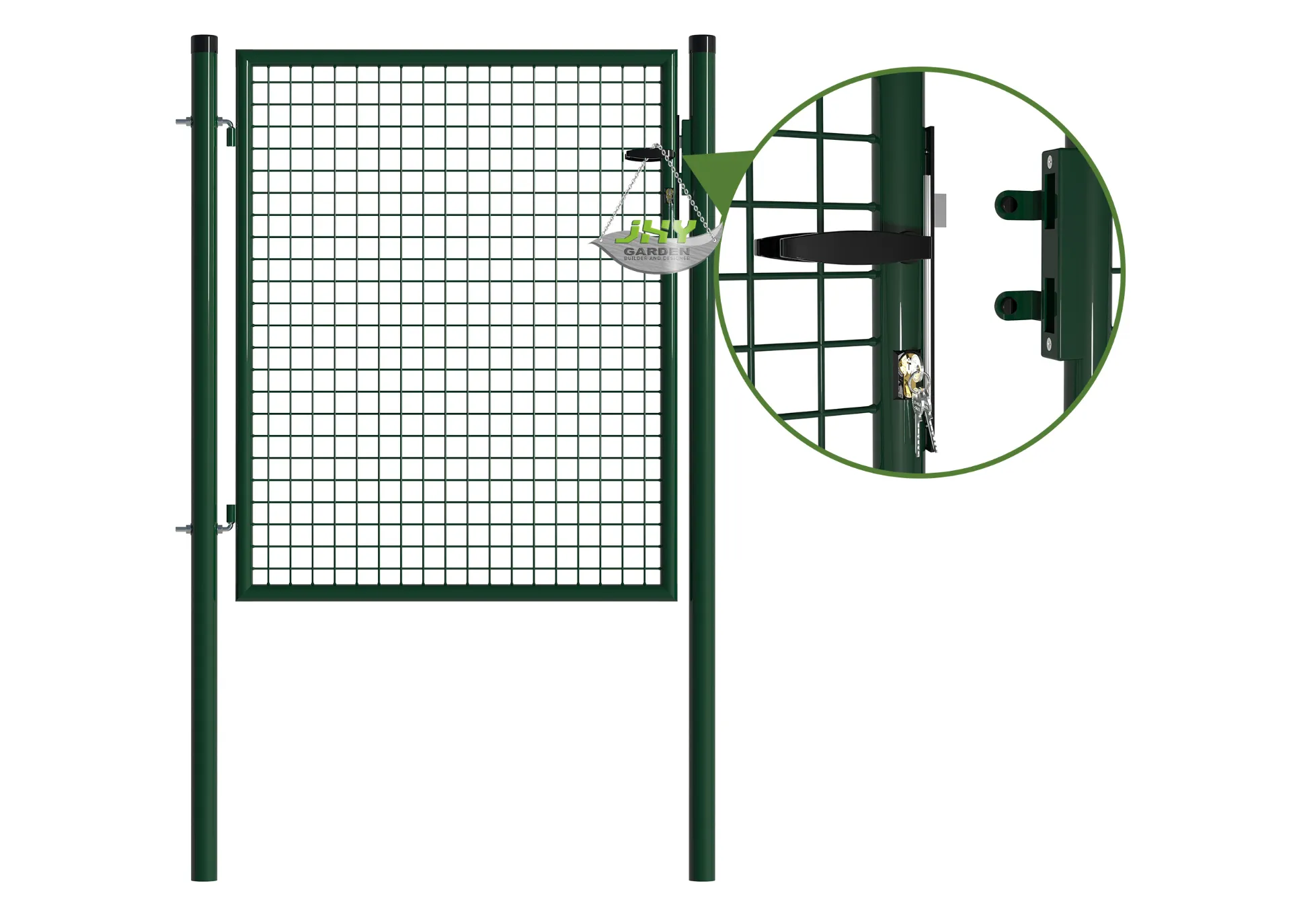

    Mesh Fence Garden Gate 1000×1250mm lock opening.webp1
    Mesh Fence Garden Gate 1000×1250mm mesh.webp1
    • Technical
    • Description
    • Technical Parameters
    • Assembly
    • Client's Feedback
    TECHNICAL DATA
    • RAL
      6005 /7016
    • Material
      Galvanized steel and Powder Coating
    • Frame Size
      87x125cm
    • Frame Diameter
      Ø40mm
    • Frame Thickness
      1.2mm
    • Type of Filling
      Wire mesh
    • Mesh size
      50x50mm
    • Mesh Wire Diameter
       4.0mm
    • Post Height
      175cm
    • Post Diameter
      Ø60mm
    • Post Thickness
       1.5mm
    • Full Size
      100x125cm
    • Package
      Carton or Pallet
    •









    DESCRIPTION
    • Round posts and frame
    • Width: 100 cm and Height: 125cm
    • Technical Method : Galvanized with powder coating Finish
    • Package : Carton or Pallet, according to customers’ request
    • Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

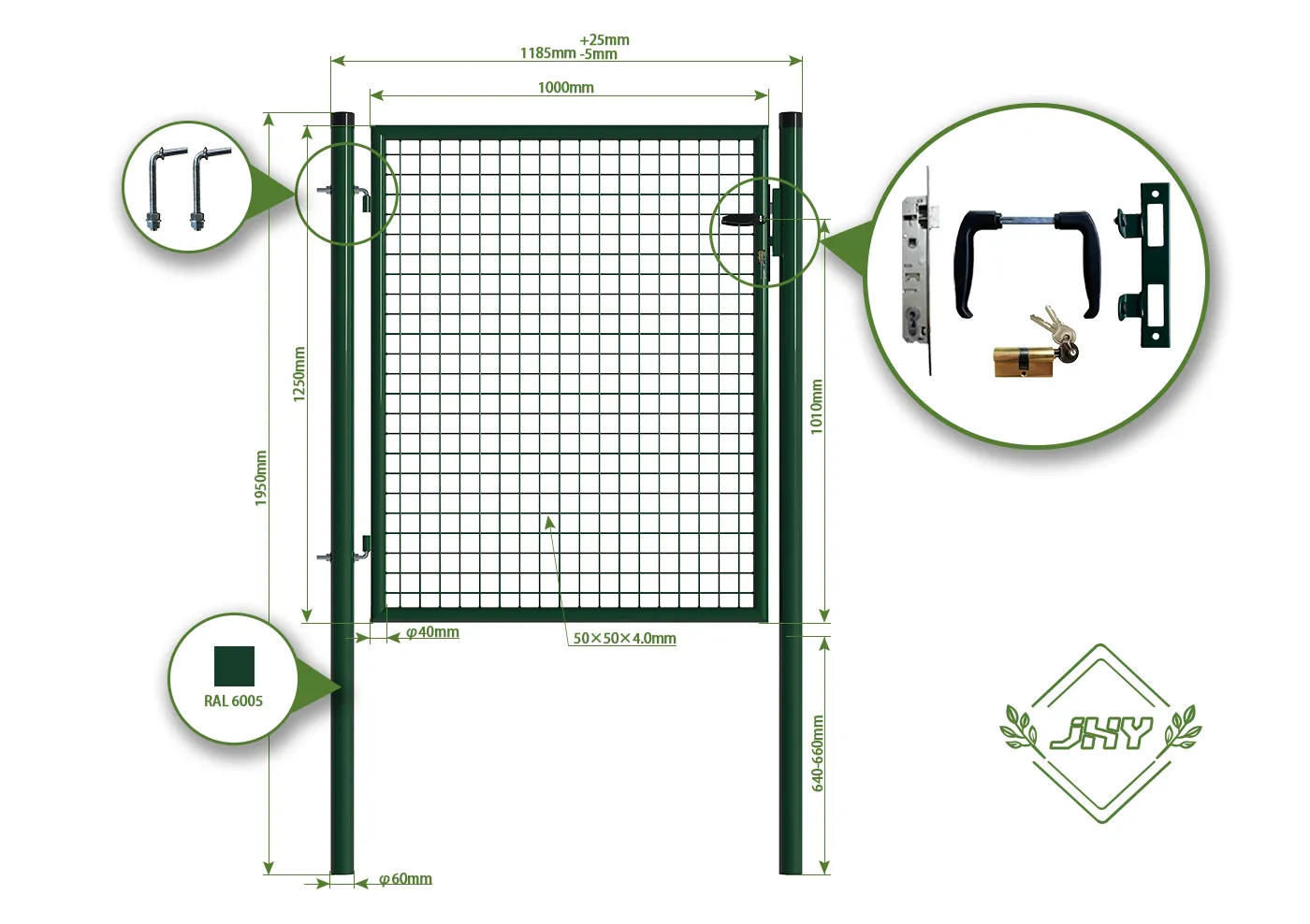

    TECHNICAL DIAGRAM

















    ABOUT OUR PRODUCTS



    JHY is a remarkable Mesh Fence Garden Gates manufacturer, and we can help you develop and stabilize your local market. In general, with a certain number of mesh, frame and post, a Mesh Fence Garden Gate could be welded. However, like any other thing in the world, it is more than complicated to do than it sounds. Before the welding part, there are many procedures to be finished. Specially, for the purpose of improve the durability of the Mesh Fence Garden Gates, we applied the technique of electrostatic powder coating using the electric field to attach the coating to the product, which also makes it strongly corrosion resistant. It’s an incredibly economic technique, the particular for which is that the coating is almost 100% attached to the Mesh Fence Garden Gates with nearly no waste. In spite of that, we still get the mesh, frame and post galvanized, protecting the metal with a thin layer of zinc, so that even with extreme weather, the Mesh Fence Garden Gates could hold on for a long time.

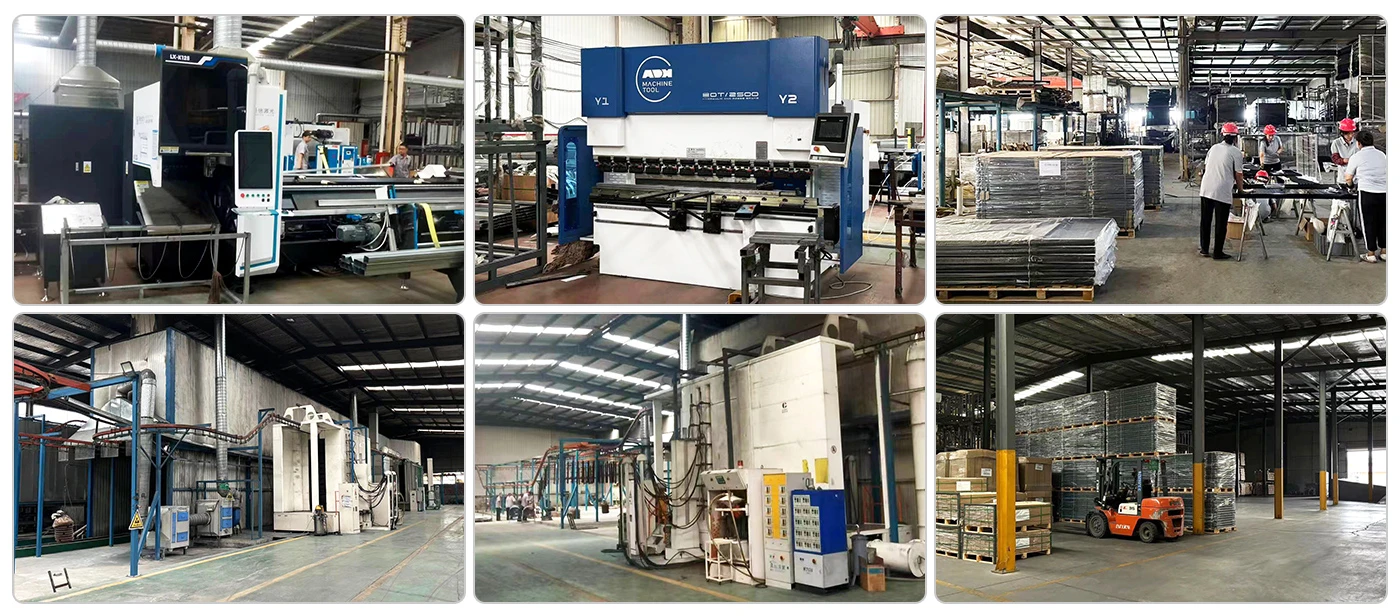

    OUR WORKSHOP
    Mesh Gates Workshop.webp
