    Mesh Gates
    • 656 2D Fencing Garden Gate 1000×2000mm.webp1
      Grey
    • 656 2D Fencing Garden Gate 1000×2000mm.webp1
      Green

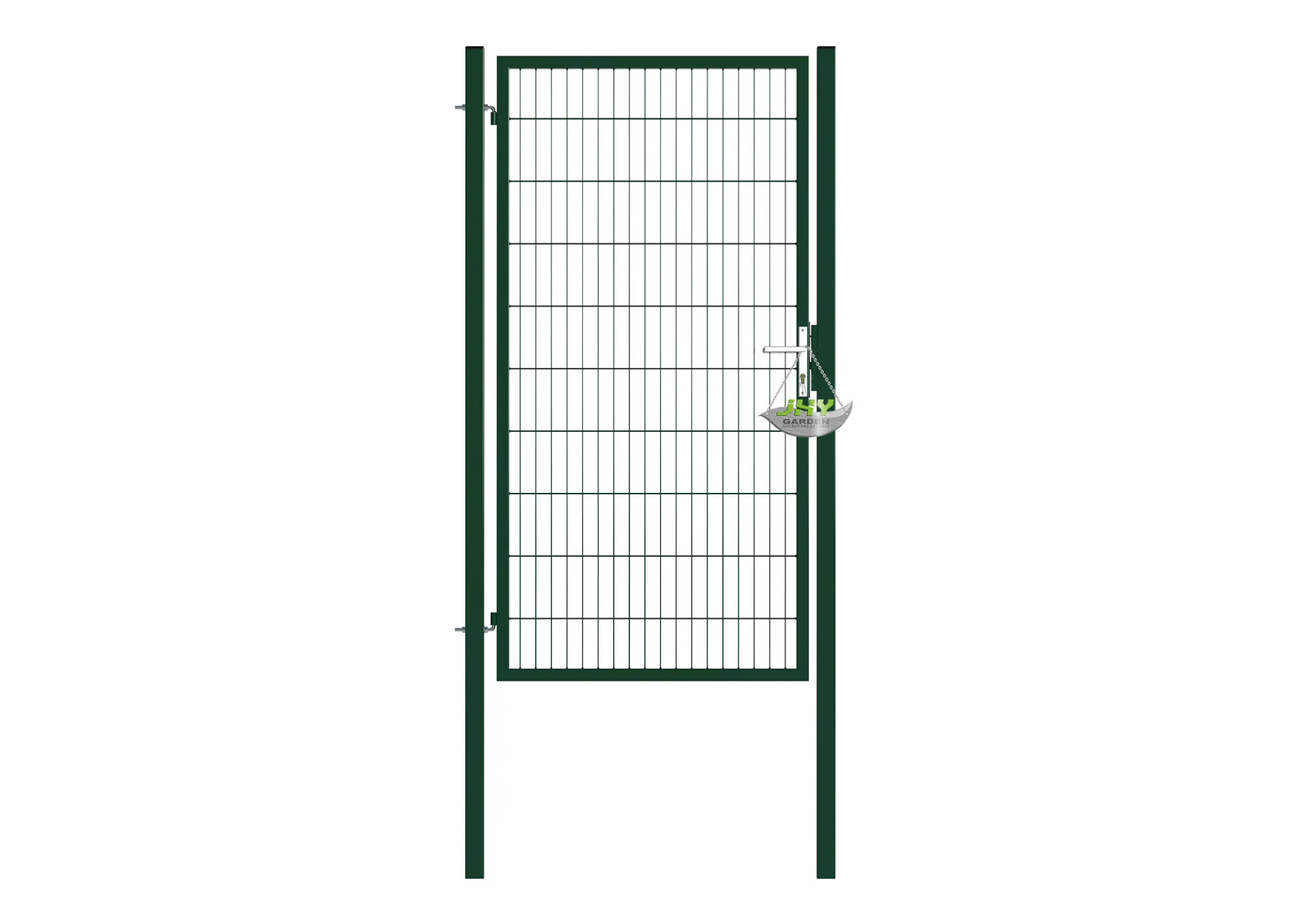

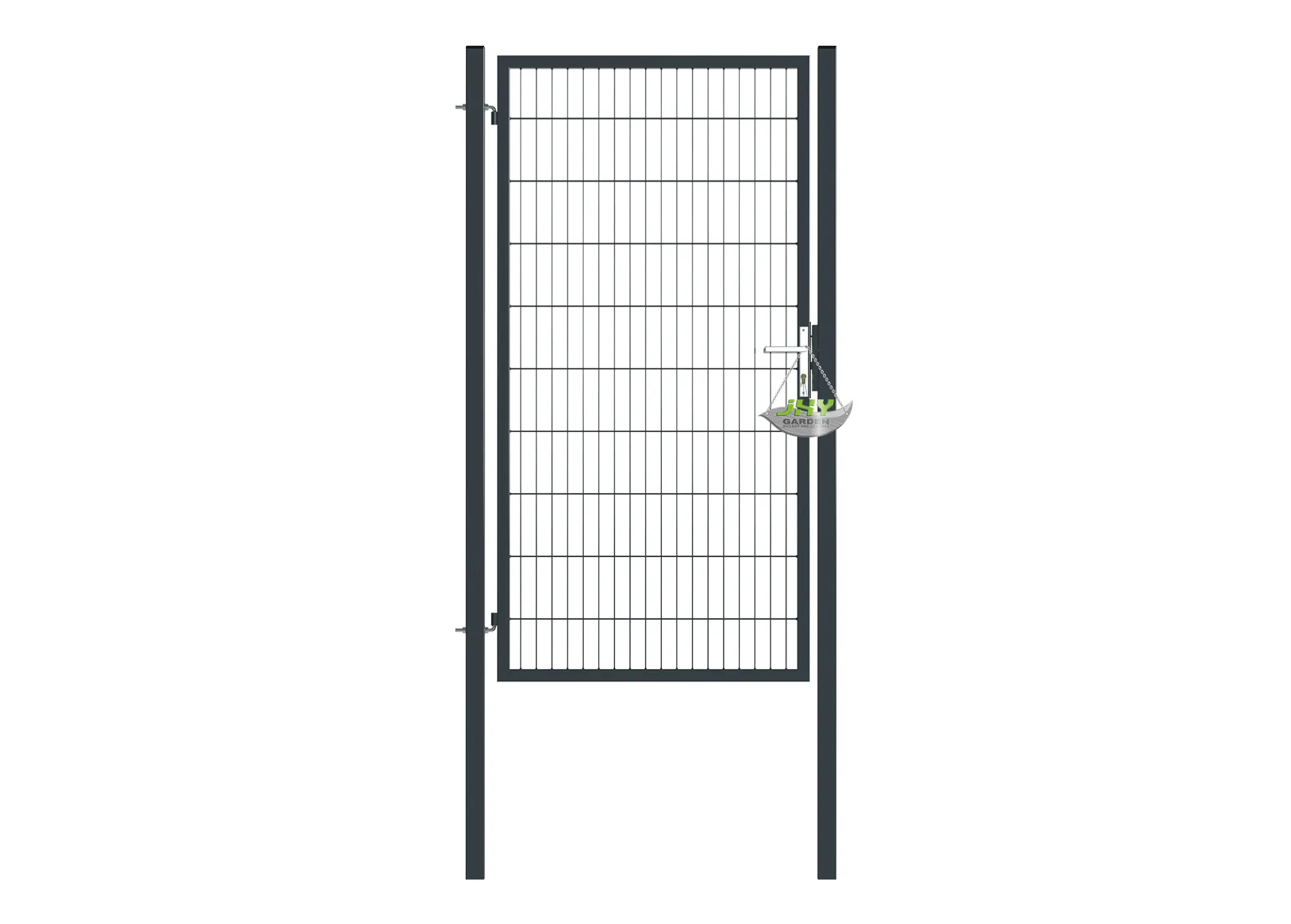

    6/5/6 2D MESH FENCING GARDEN GATES WIDTH 100CM & HEIGHT 200CM GREEN & GREY SQUARE POST & FRAME

    Square posts and frame
    Width: 100 cm and Height: 200cm
    Technical Method : Galvanized with powder coating Finish
    Package : Carton or Pallet, according to customers’ request
    Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

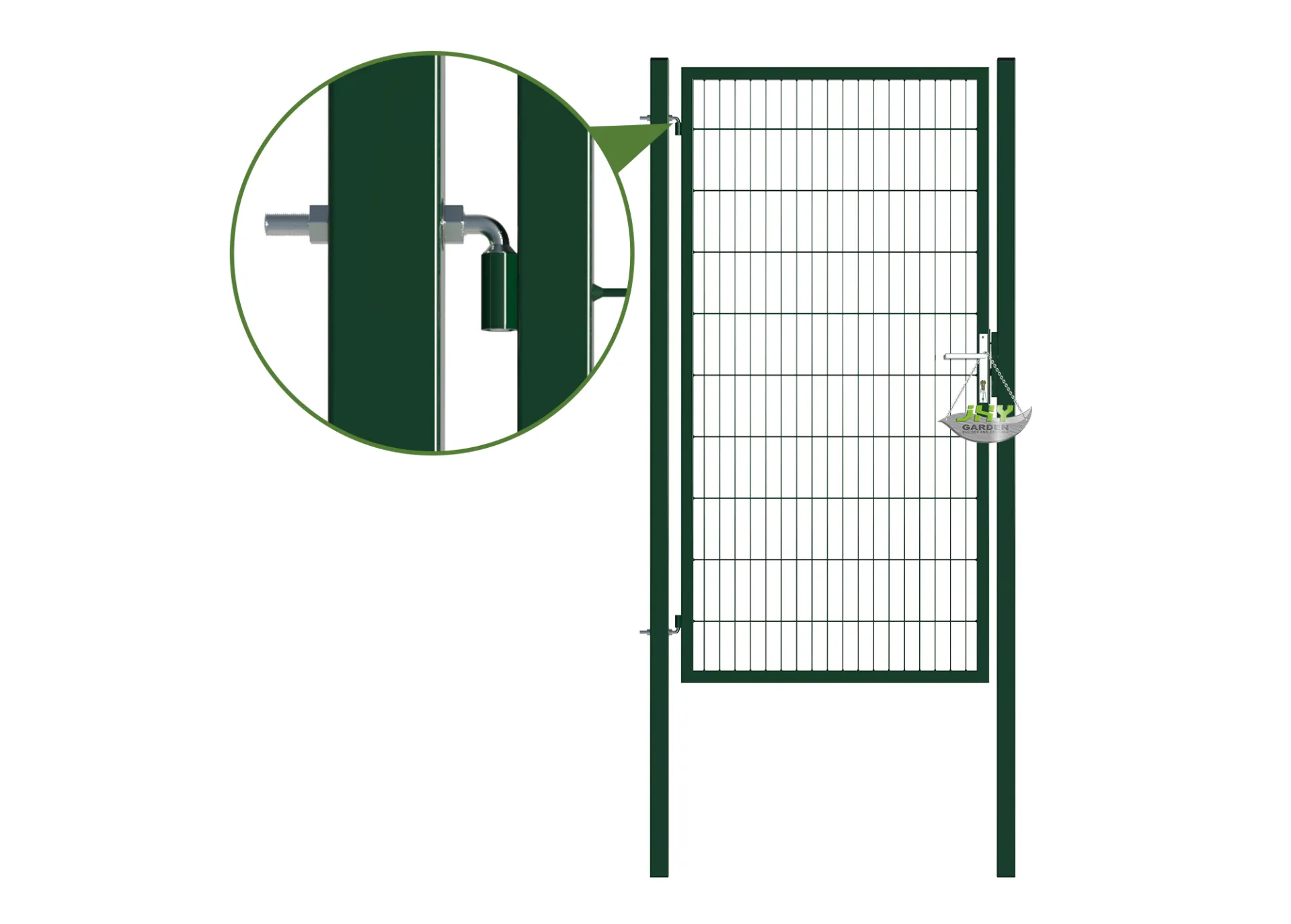

    656 2D Fencing Garden Gate hinge 1000×2000.webp1

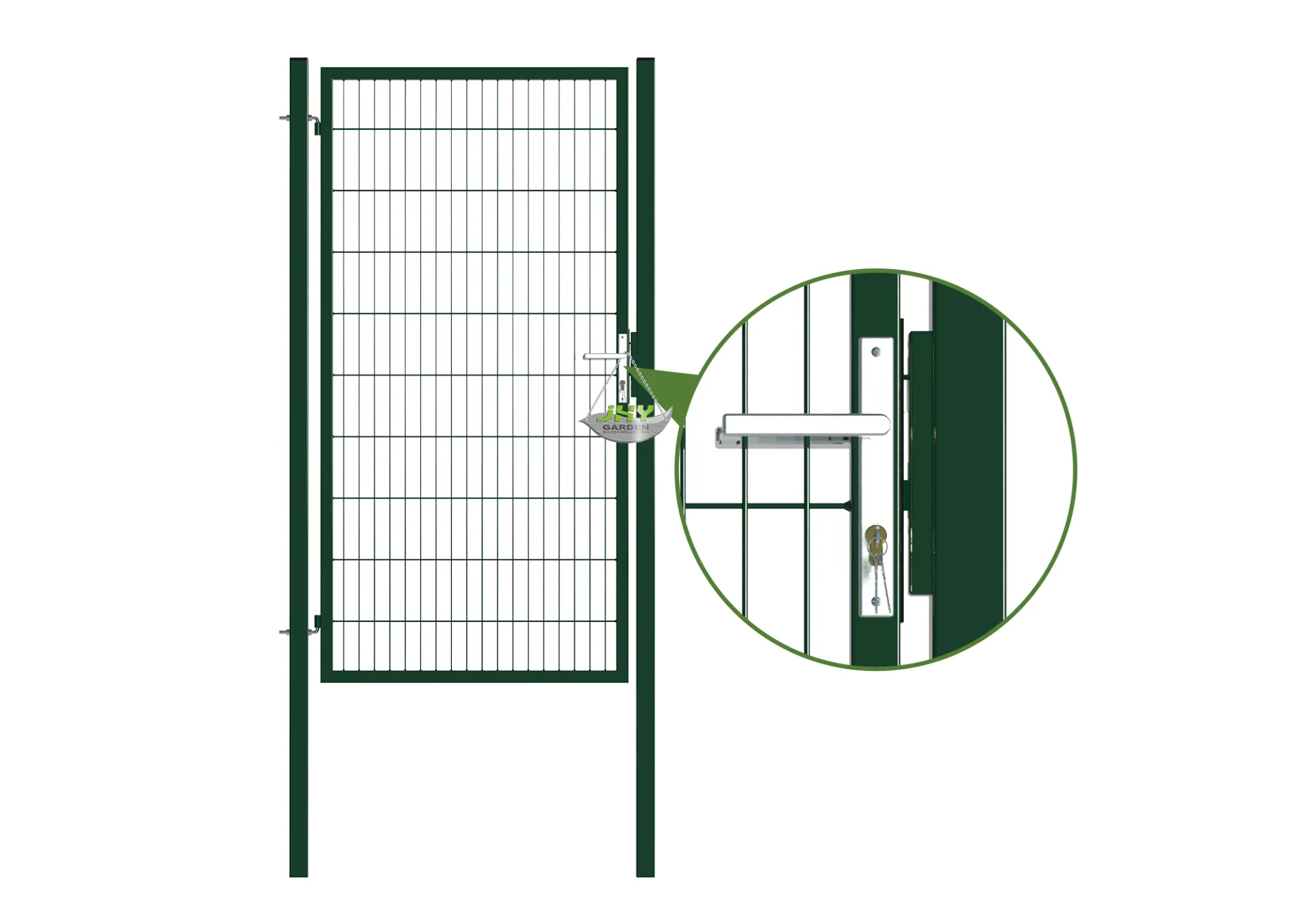

    656 2D Fencing Garden Gate lock 1000×2000.webp1

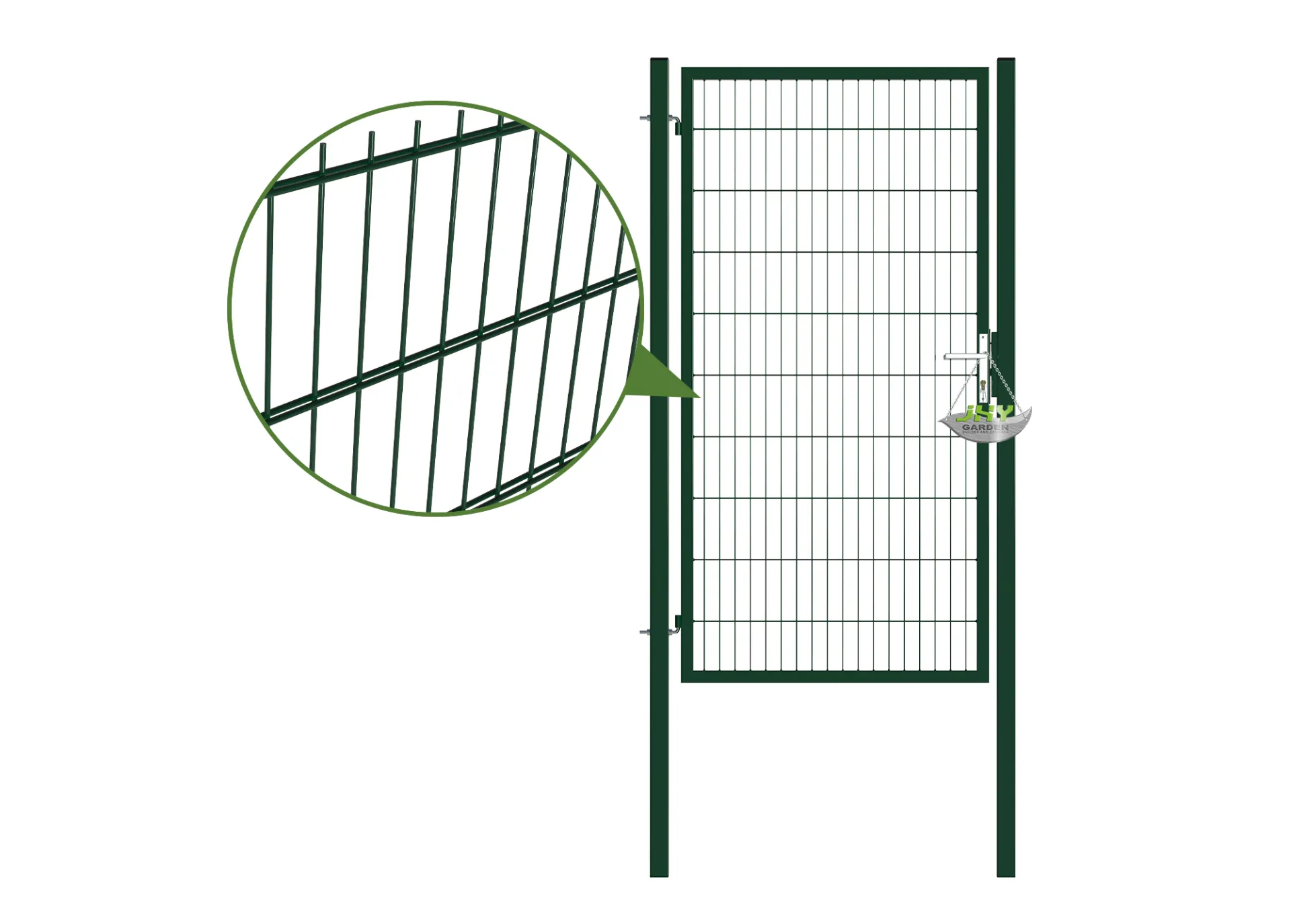

    656 2D Fencing Garden Gate mesh 1000×2000.webp1

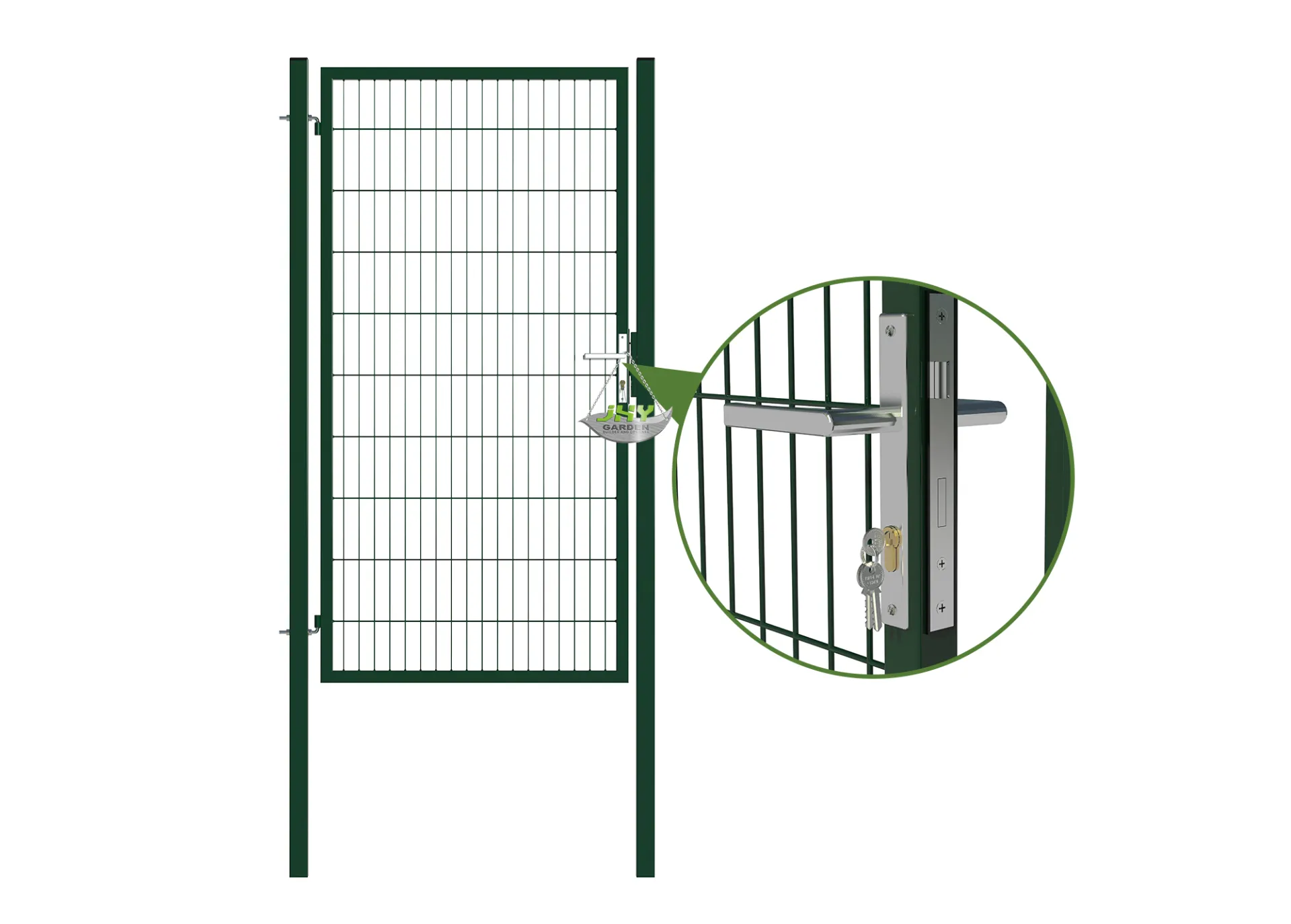

    656 2D Fencing Garden Gate opening 1000×2000.webp1
    • Technical
    • Description
    • Technical Parameters
    • Assembly
    • Client's Feedback
    TECHNICAL DATA
    • RAL
      6005 /7016
    • Material
      Galvanized steel and Powder Coating
    • Frame Size
      100x200cm
    • Frame Diameter
      40x40mm
    • Frame Thickness
      1.3mm
    • Type of Filling
      Wire mesh
    • Mesh size
      50x200mm
    • Mesh Wire Diameter
      6/5/6mm
    • Post Height
      270cm
    • Post Diameter
      60x60mm
    • Post Thickness
      2.0mm
    • Full Size
      100x200cm
    • Package
      Carton or Pallet







                         DESCRIPTION



    • Square posts and frame
    • Width: 100 cm and Height: 200cm
    • Technical Method : Galvanized with powder coating Finish
    • Package : Carton or Pallet, according to customers’ request
    • Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

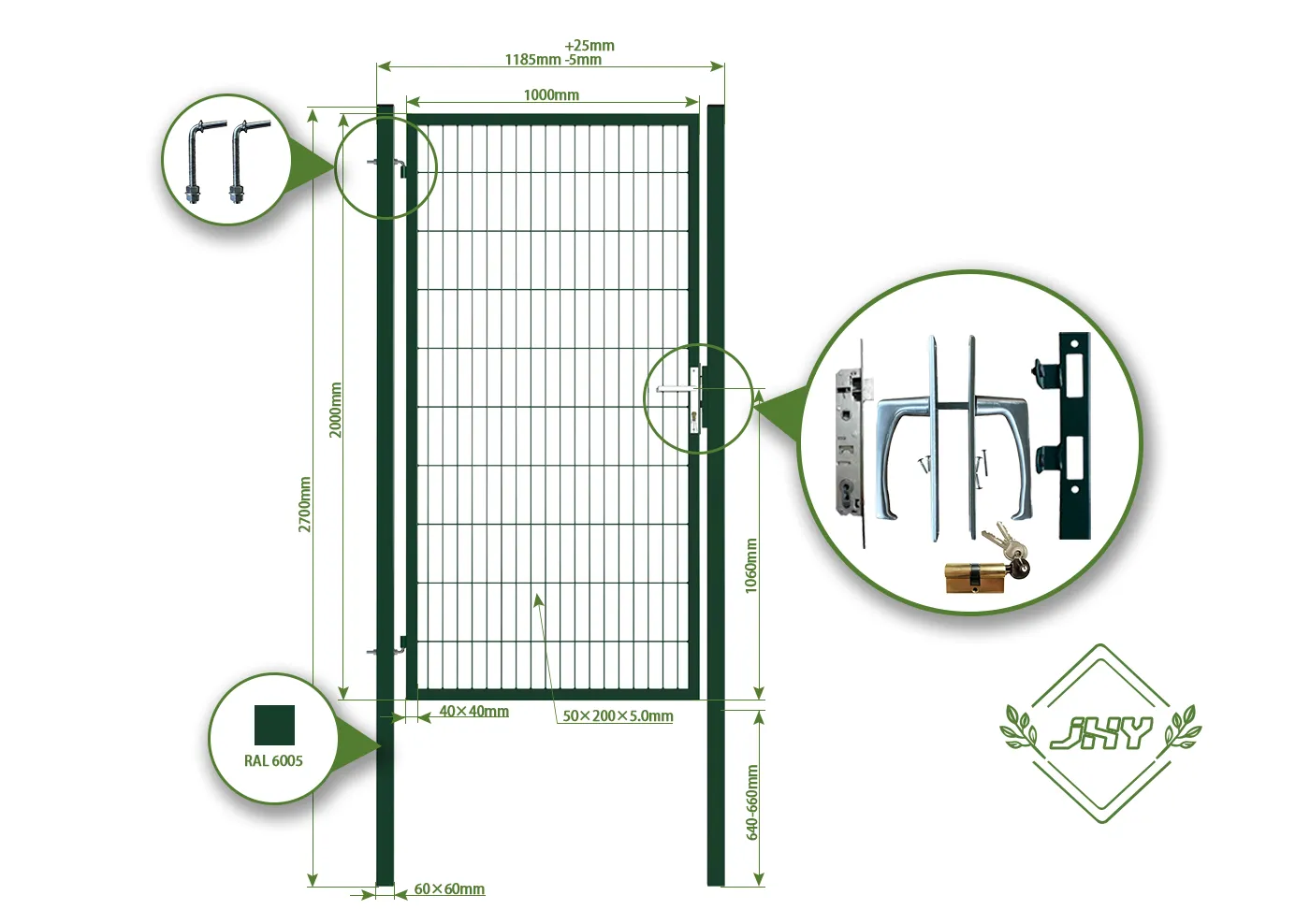

    TECHNICAL DIAGRAM









    ABOUT OUR PRODUCTS



    JHY manufactures 6/5/6 2D Mesh Fencing Garden Gates for you. 6/5/6 2D Mesh Fencing Garden Gates are a kind of garden gate, which the gate frame is filled by welded wire fence panel. There are many kinds of welded wire fence panel infill, if you divide it by wire, there are single-wire welded wire gates, and double wire welded wire gates. If you distinguish it by mesh surface, you can find flat Fencing Garden Gates and Fencing Garden Gates bending on the horizontal wire direction. Here we are talking about the 6/5/6 2D Mesh Fencing Garden Gates with double wire welded wire. Except for the traditional wire mesh garden gates, JHY began to produce 6/5/6 2D Mesh Fencing Garden Gates in 2015. Till now, we have helped our customers finished more than 50000 sets of 6/5/6 2D Mesh Fencing Garden Gates. JHY is familiar with the online store's product quality and packing requirements to provide better 6/5/6 2D Mesh Fencing Garden Gates for you.
