    Panels

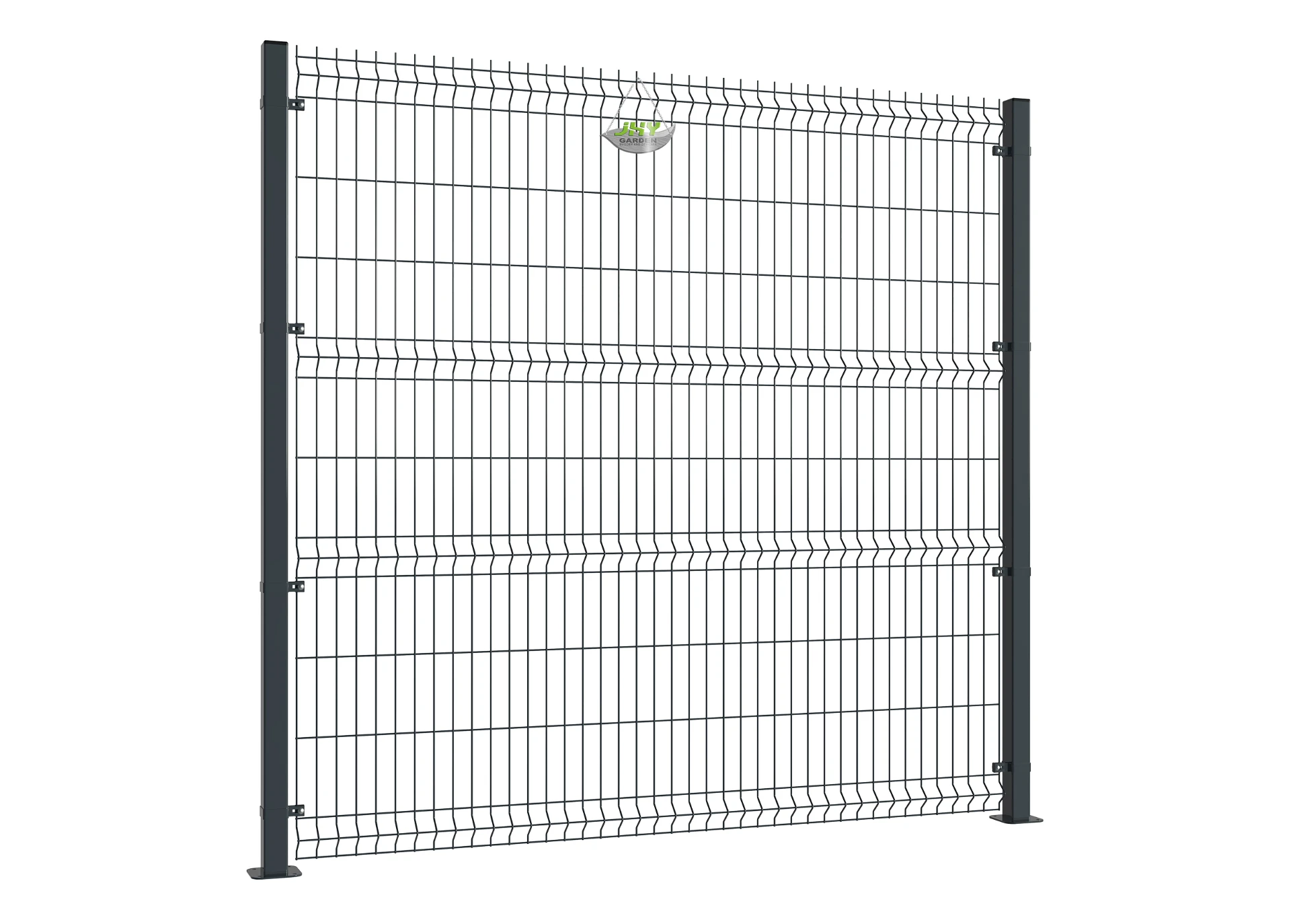

    • 2030
      Grey

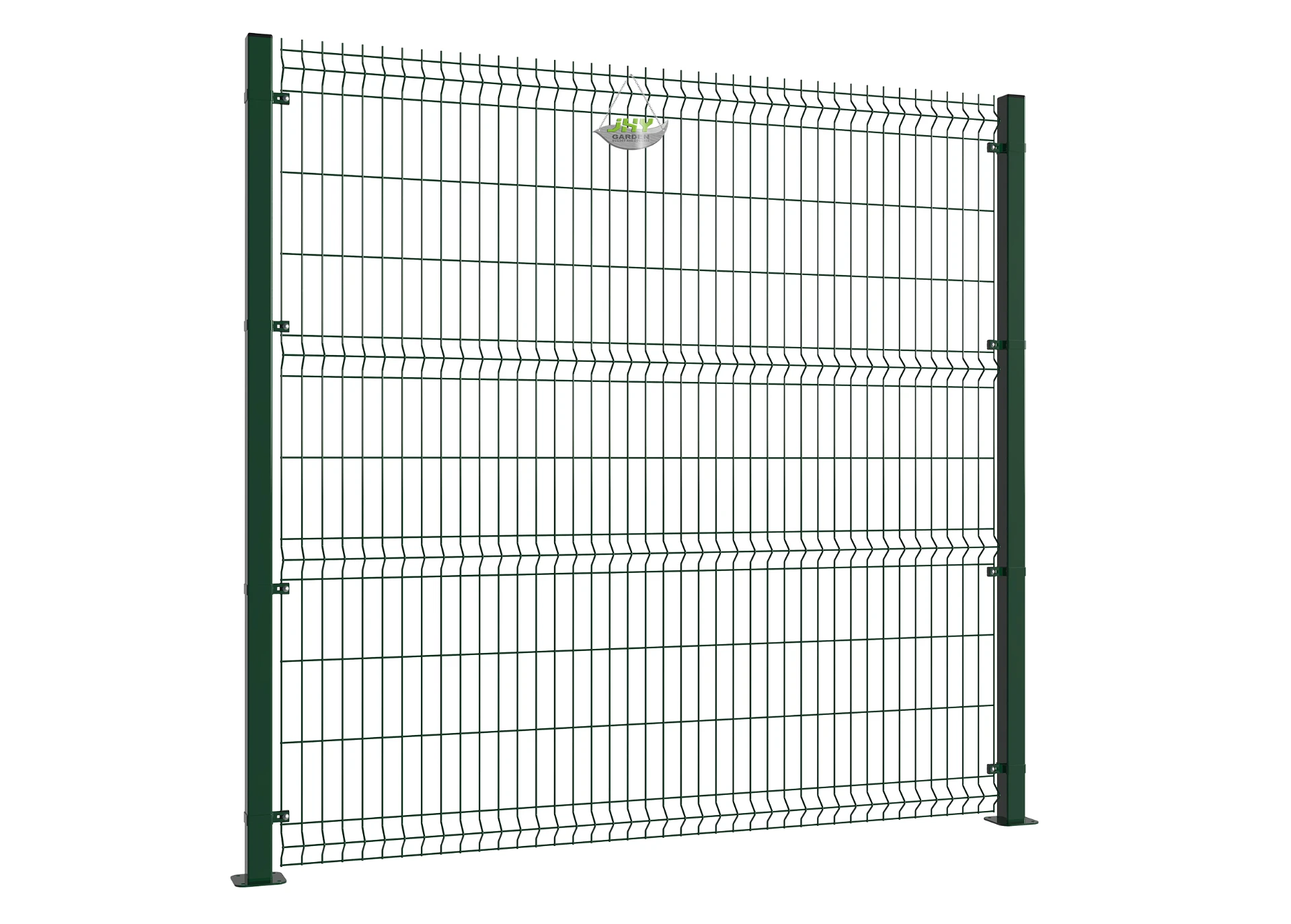

    • 2030
      Green

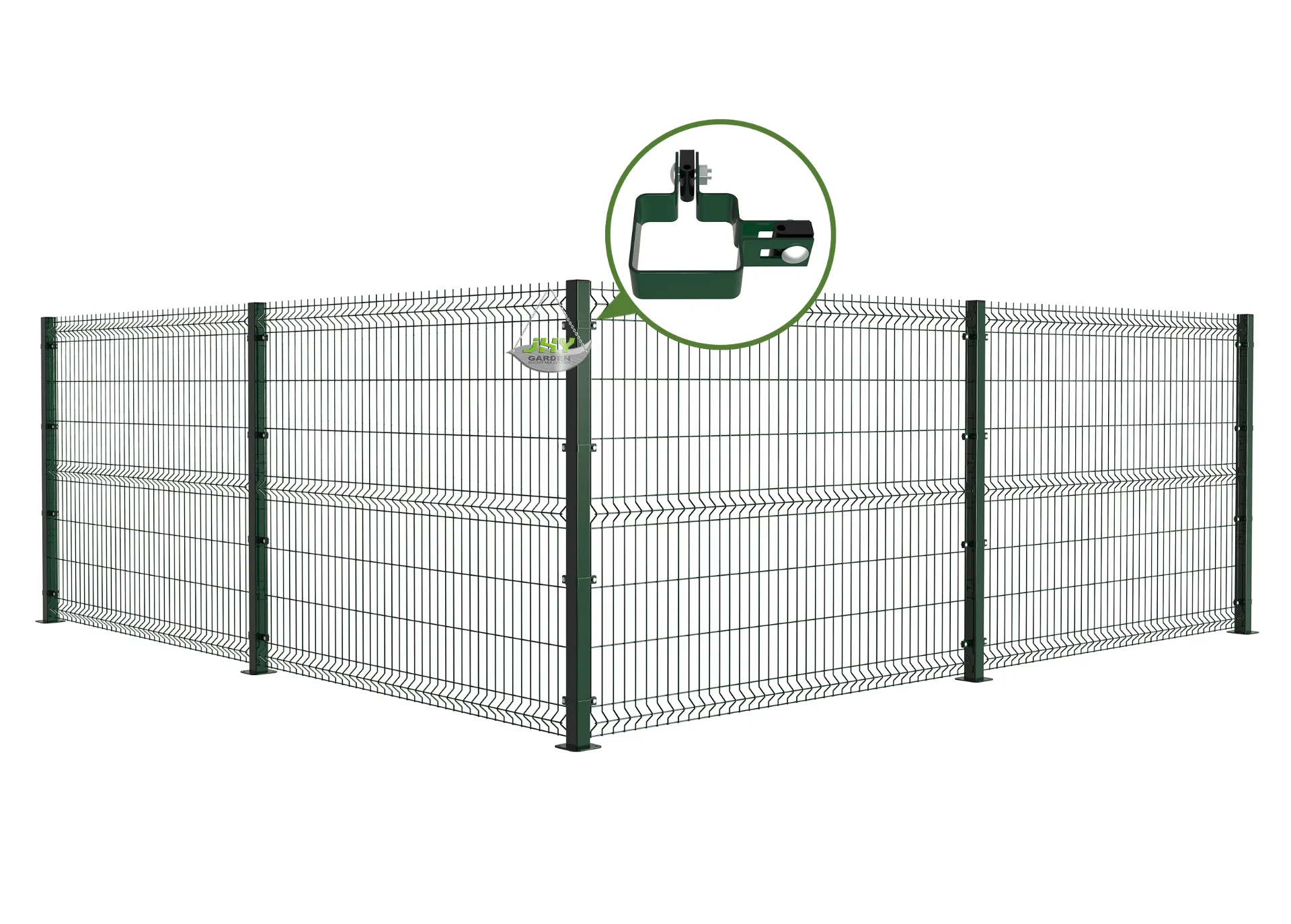

    3D WELD MESH FENCE PANELS WIDTH 250CM & HEIGHT 203CM

    Square posts
    Width: 2500mm and Height: 2030mm
    Technical Method : Galvanized with powder coating Finish
    Package : Carton or Pallet, according to customers’ request
    Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

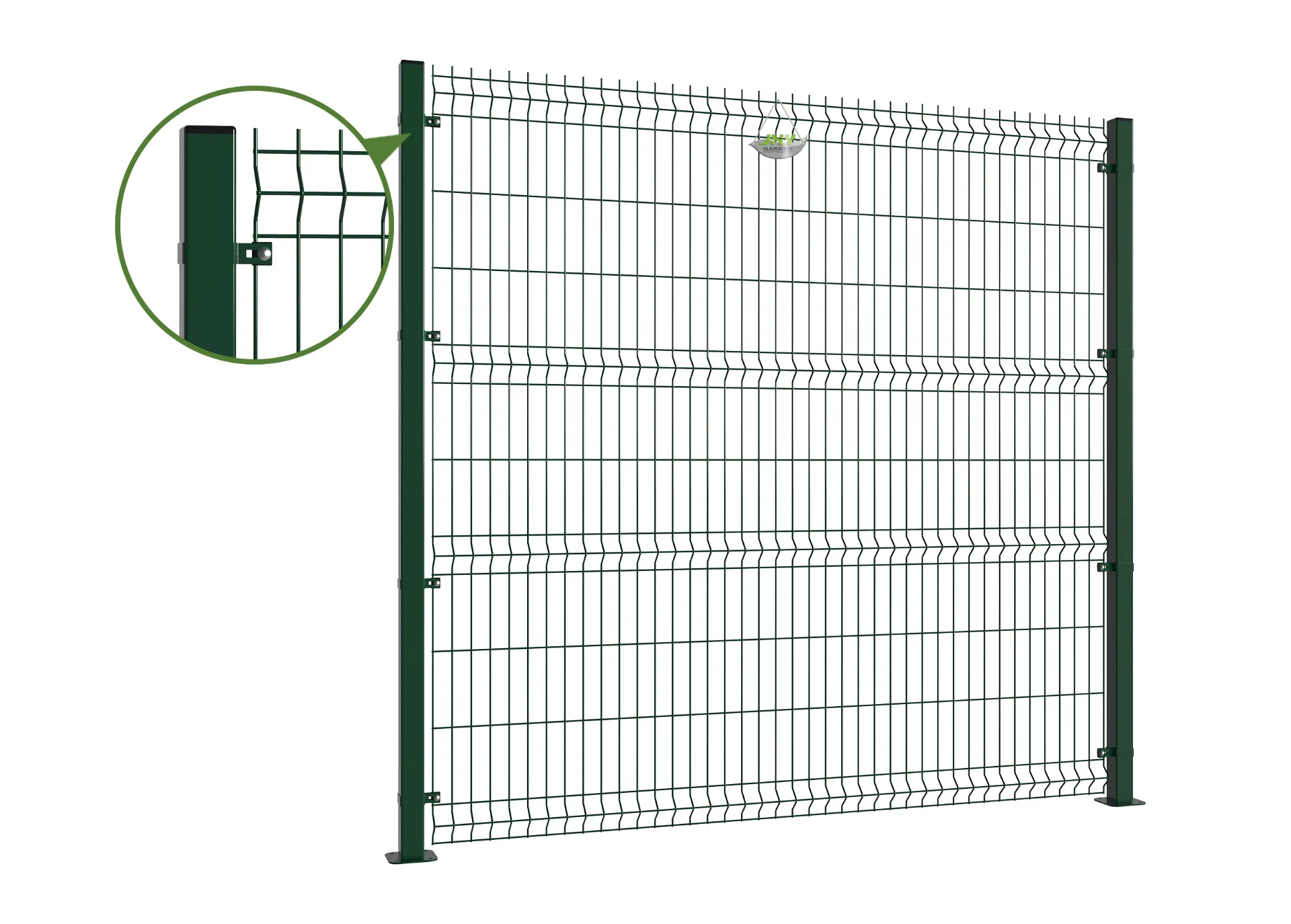

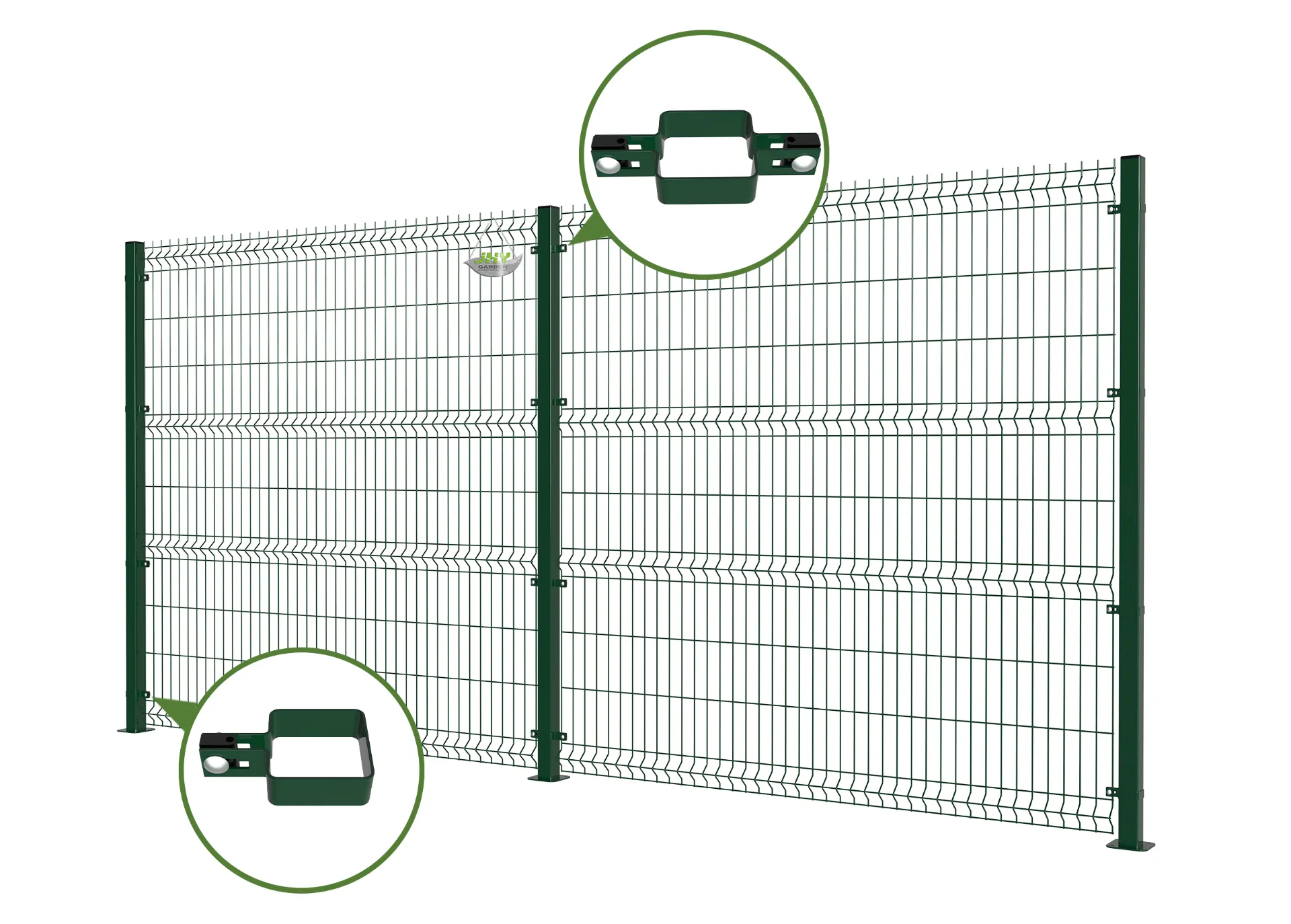

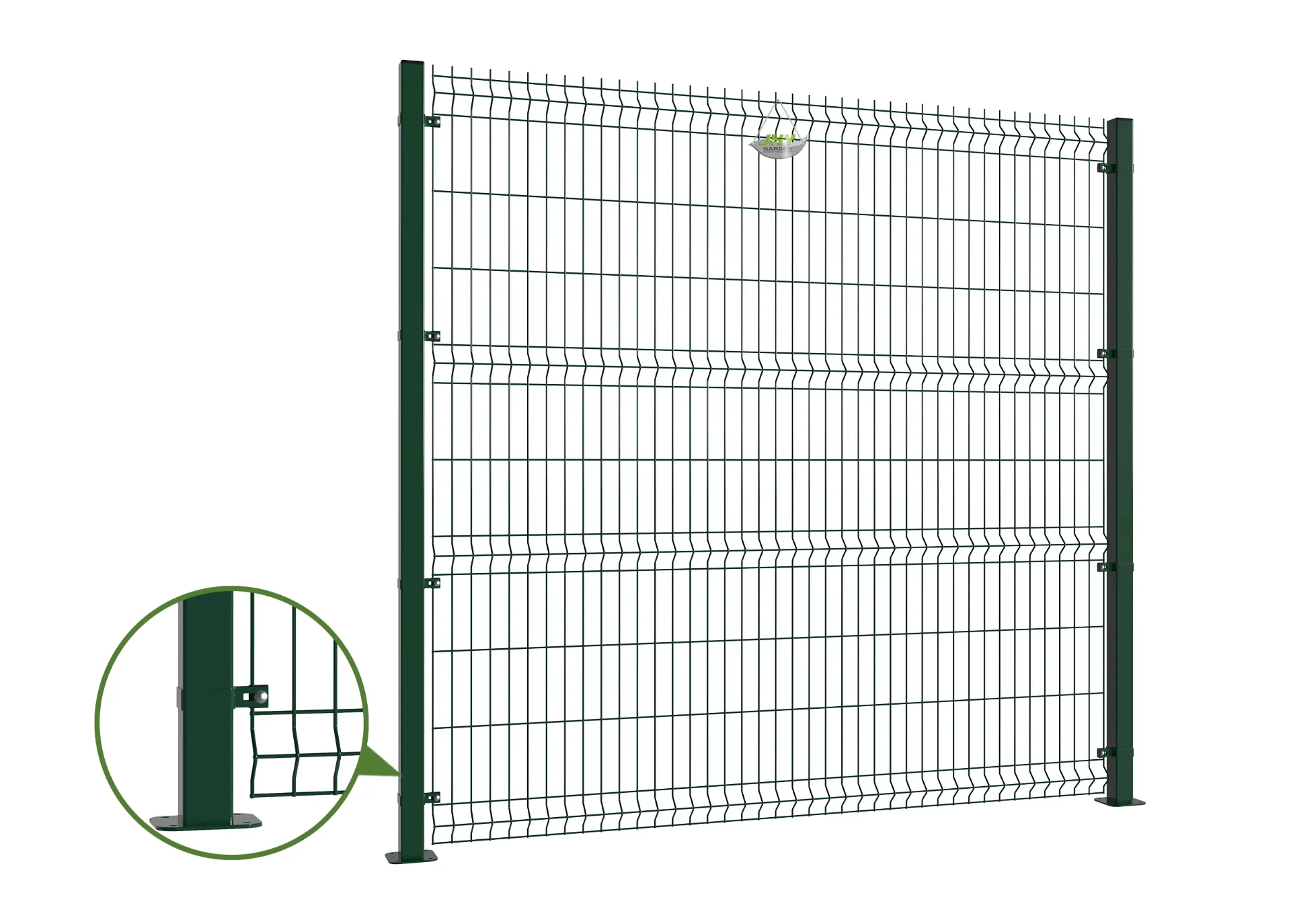

    3D Weld Mesh Fence Panels Square post 2.webp1
    3D Weld Mesh Fence Panels Square post 2.webp2
    3D Weld Mesh Fence Panels Square post 2.webp3
    3D Weld Mesh Fence Panels Square post 2.webp4
    • Technical
    • Description
    • Technical Parameters
    • Assembly
    • Client's Feedback
    TECHNICAL DATA
    • RAL
      6005 /9005
    • Material
      Galvanized steel and Powder
    • Mesh size
      50x200mm
    • Mesh Wire Diameter
      5.0mm
    • Panel Width
      2500mm
    • Panel Height
      2230mm
    • V no.
      4
    • V Distance
      100mm
    • Suitable Post Height
      2280mm
    • Post Diameter
      60x60mm
    • Post Thickness
      1.5mm
    • Full Size
      2500x2030mm
    • Package
      Carton or Pallet
    •



    DESCRIPTION
    • Square posts
    • Width: 2500mm and Height: 2230mm
    • Technical Method : Galvanized with powder coating Finish
    • Package : Carton or Pallet, according to customers’ request
    • Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.
    TECHNICAL DIAGRAM





    ABOUT OUR PRODUCTS

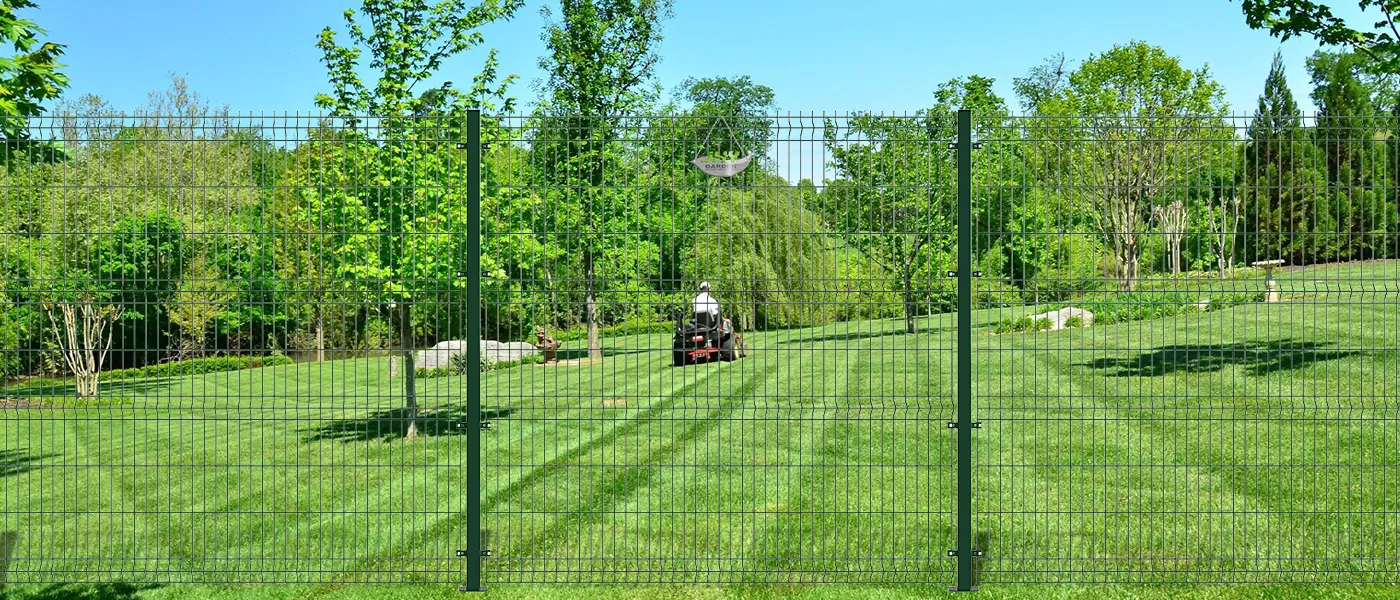

    3D Weld Mesh Fence Panel is made by 4.0mm or 5.0mm galvanized wire with apertures of 200mm x 50mm and some V profiles. JHY can supply galvanized 3D Weld Mesh Fence Panel and powder 3D Weld Mesh Fence Panel. You can choose green, grey, brown, red, black, Etc. For 3D Weld Mesh Fence Panel, you are choosing galvanized before or galvanized after. It is mainly used as a low-level security fence at rural locations, such as your front yard, back garden yard, or somewhere else you need a demarcation. The main differences between different 3D Weld Mesh Fence Panel styles are the mesh size and wire diameter. We can produce 4 on 4, 4 on 5 or 5 on 5, which means the different horizontal and vertical wire diameters. The thickness of the wire diameter can determine the strength of the 3D Weld Mesh Fence Panel. The mesh size also can impact the power. The smaller the mesh size, the more robust the 3D Weld Mesh Fence Panel. You can choose the different mesh styles according to your specific purpose.

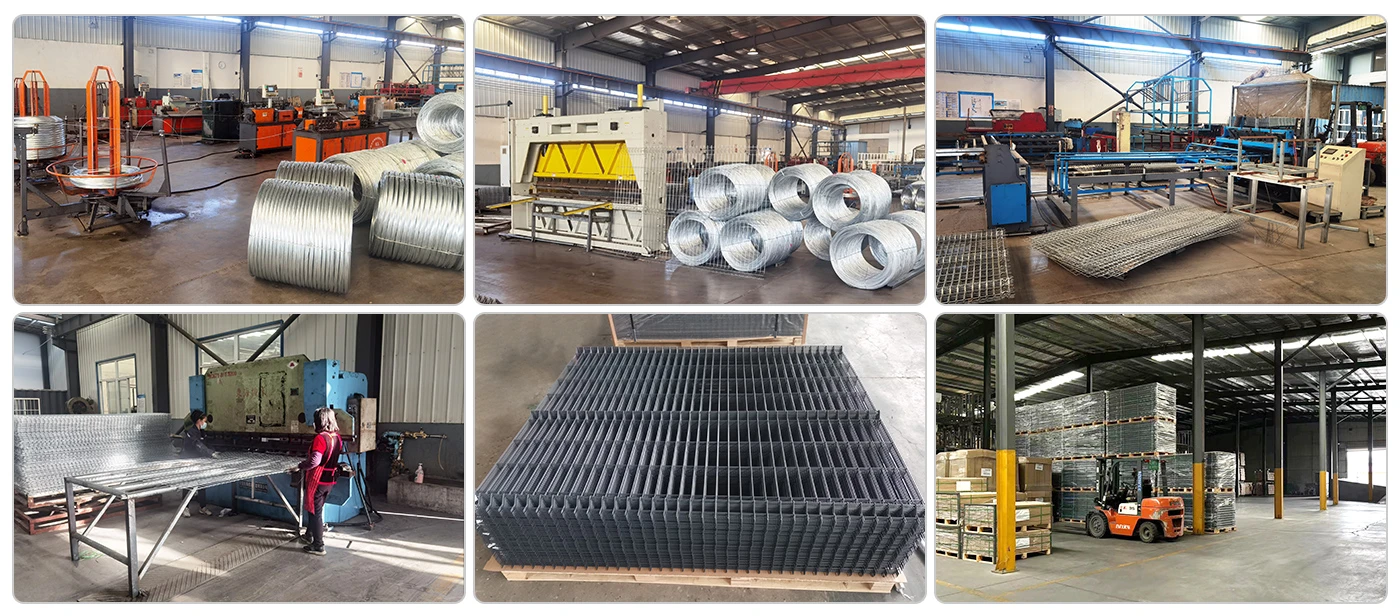

    OUR WORKSHOP
    panels
