    Mesh Gates

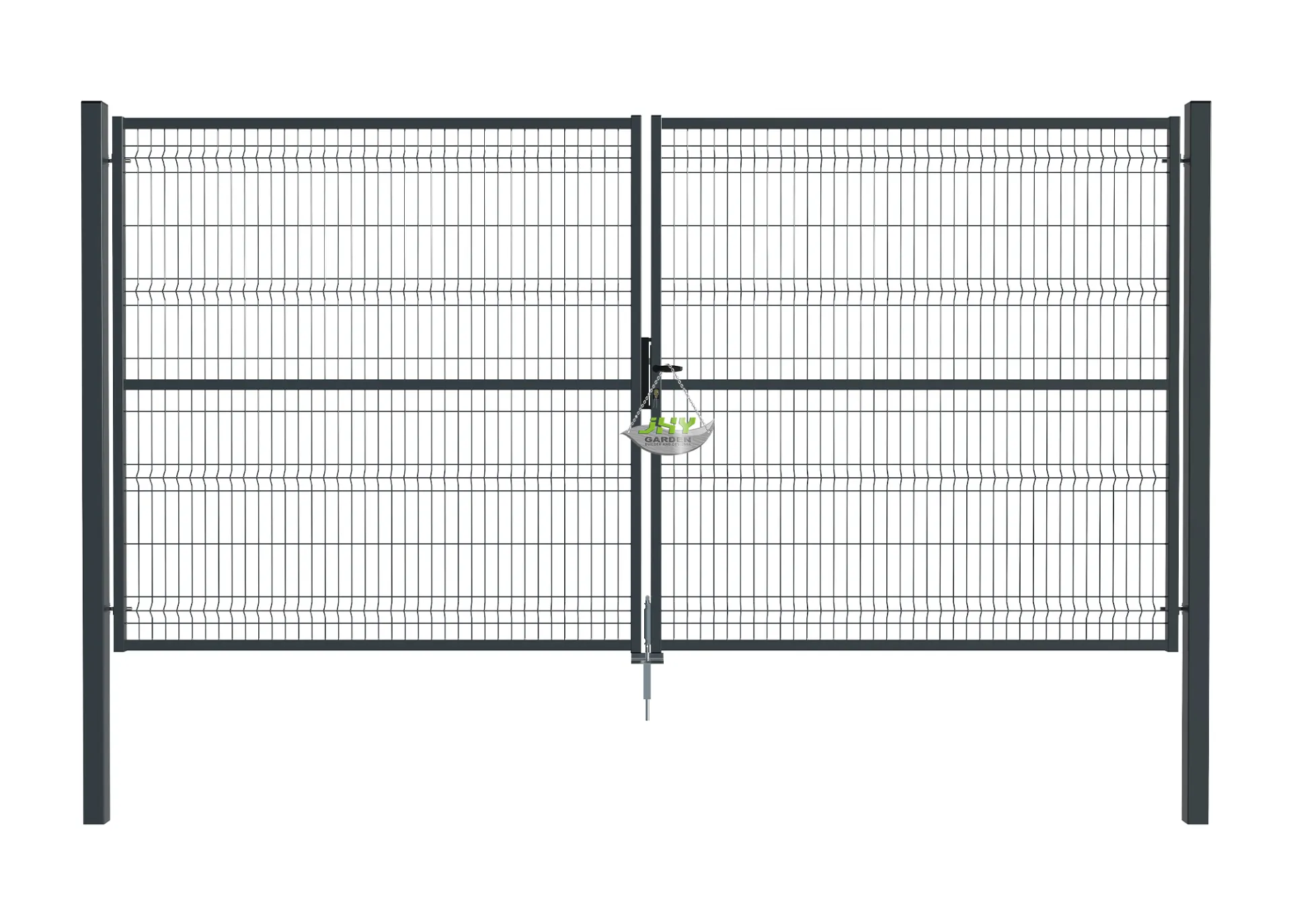

    • 3D Fencing Garden Gate 4000×2000mm.webp1
      Grey

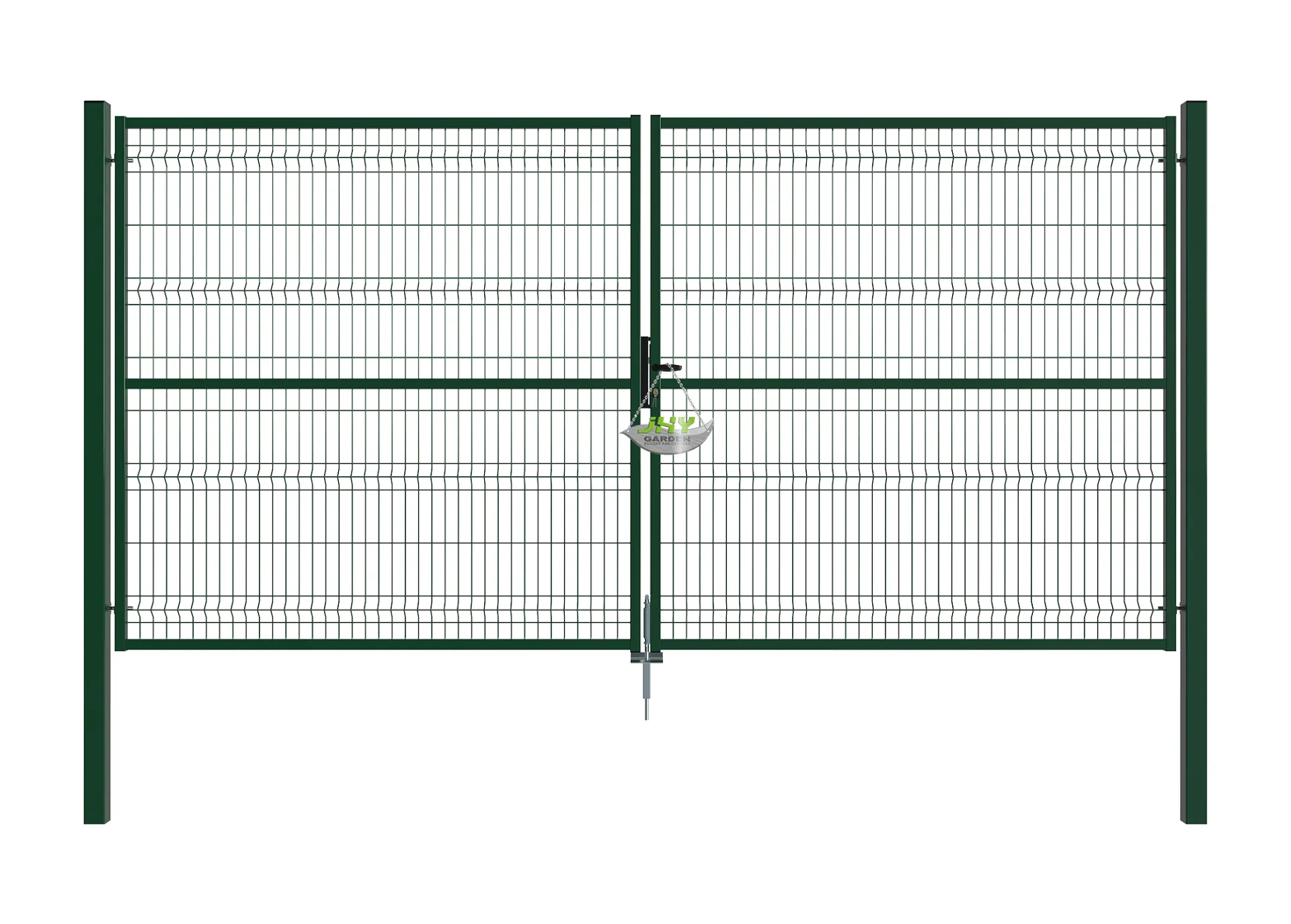

    • 3D Fencing Garden Gate 4000×2000mm.webp1
      Green

    3D FENCING GARDEN GATE WIDTH 400CM & HEIGHT 200CM GREEN & GREY SQUARE POST & FRAME

    Square posts and frame
    Width: 400 cm and Height: 200cm
    Technical Method : Galvanized with powder coating Finish
    Package : Carton or Pallet, according to customers’ request.
    Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

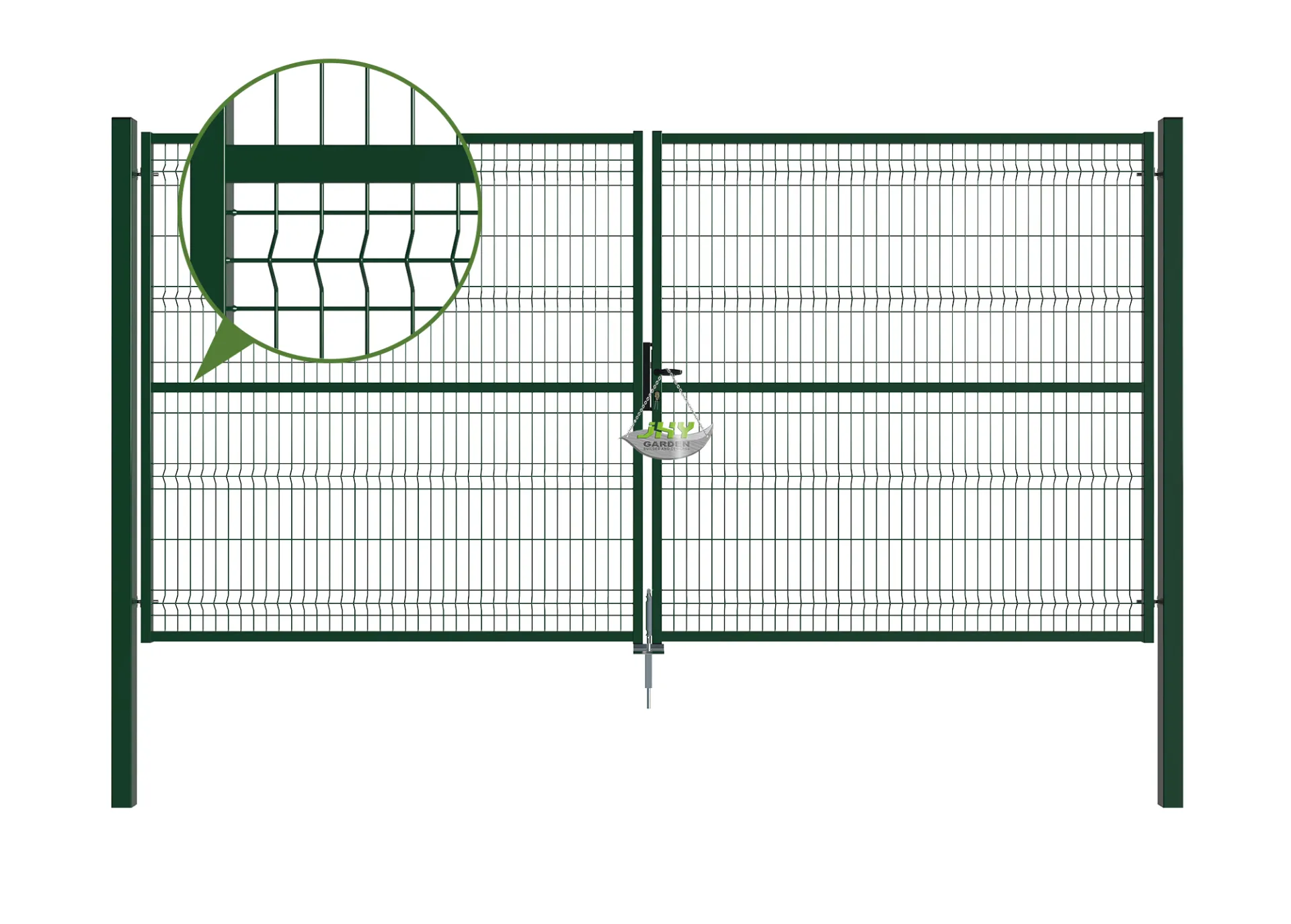

    3D Fencing Garden Gate composite 4000×2000.webp1

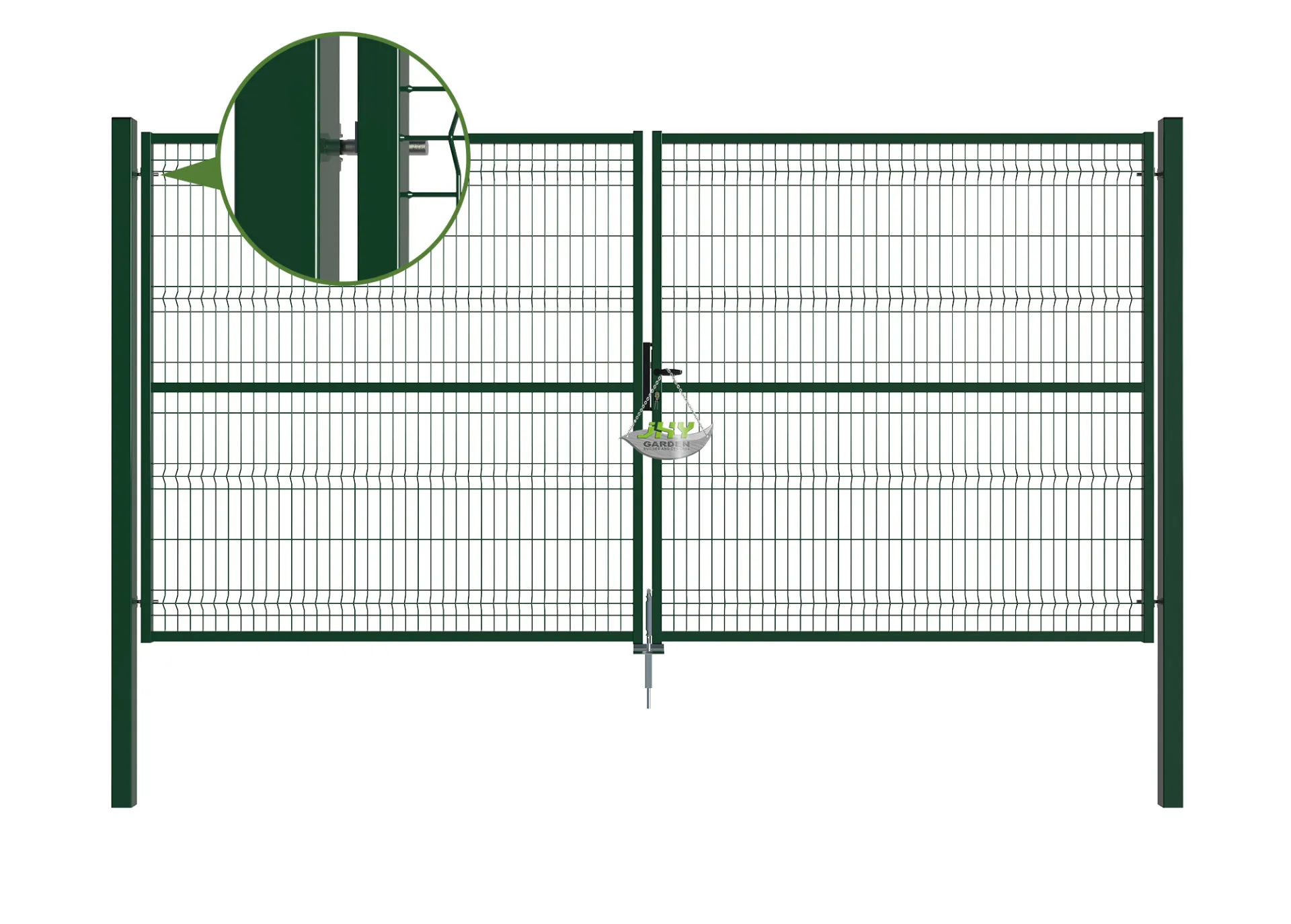

    3D Fencing Garden Gate hinge 4000×2000.webp1

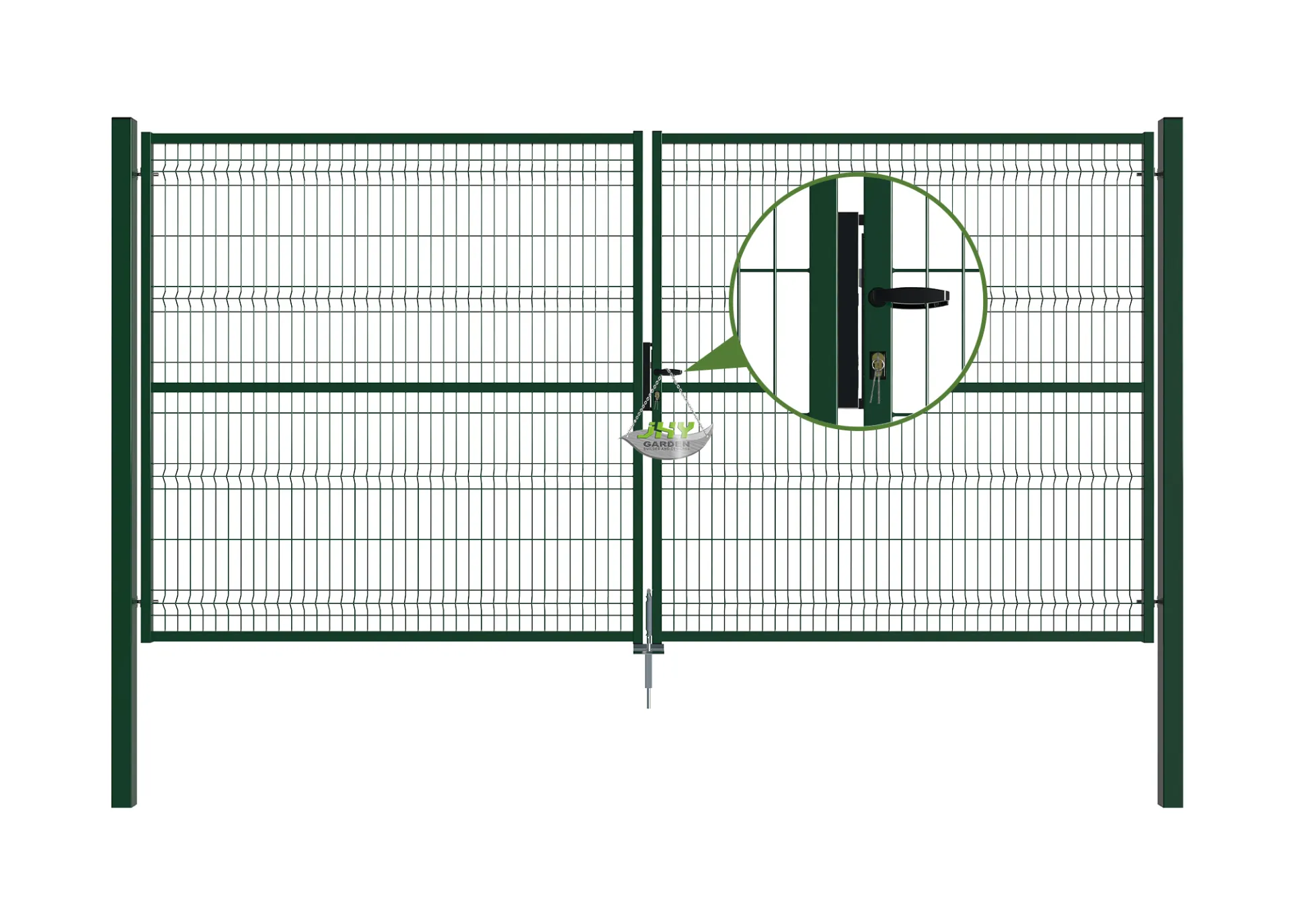

    3D Fencing Garden Gate lock 4000×2000.webp1

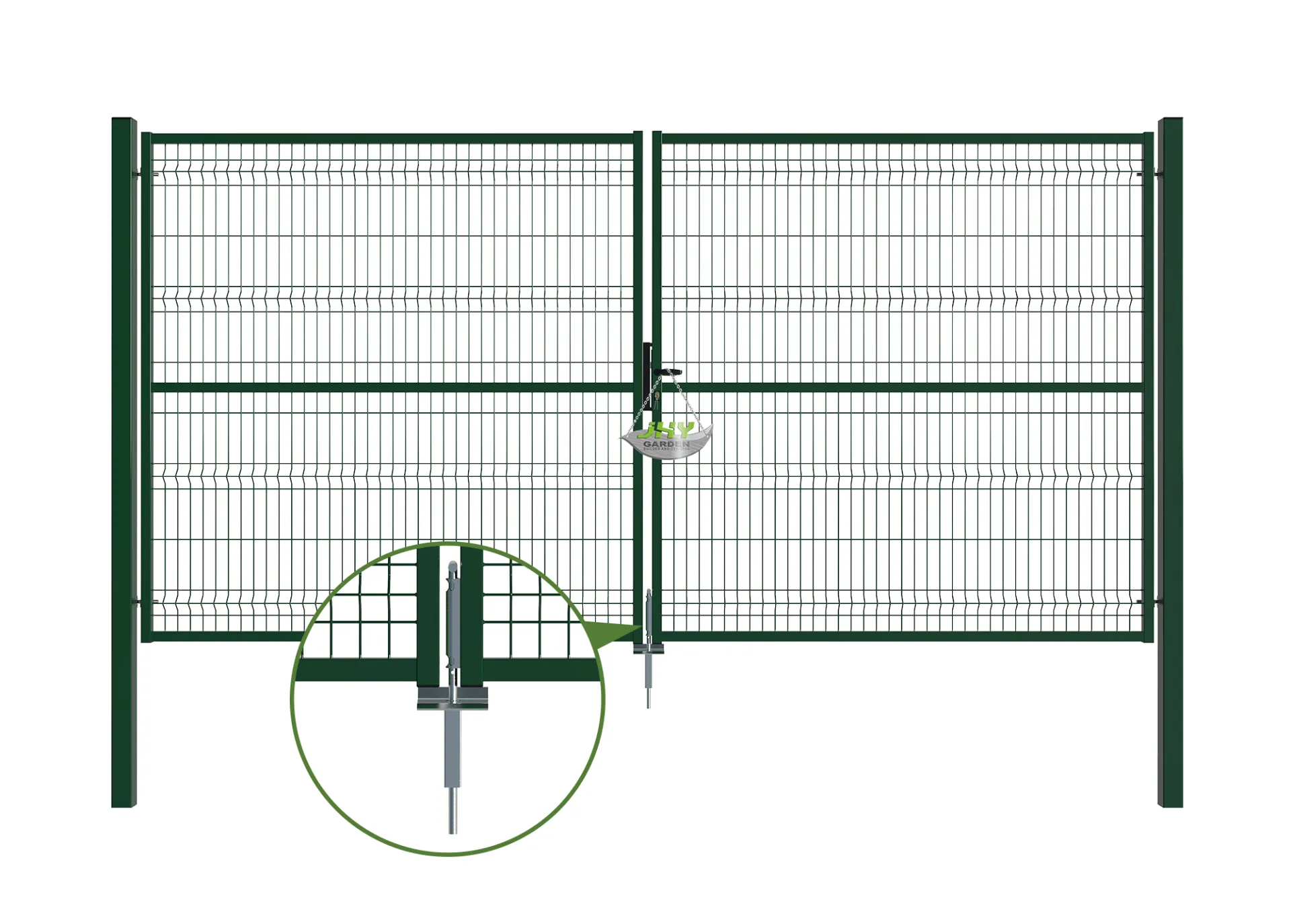

    3D Fencing Garden Gate stopper 4000×2000.webp1
    • Technical
    • Description
    • Technical Parameters
    • Assembly
    • Client's Feedback
    TECHNICAL DATA
    • RAL
      6005 /7016
    • Material
      Galvanized steel and Powder Coating
    • Frame Size
      197.5x200cm x2pcs
    • Frame Diameter
      40x40mm
    • Frame Thickness
      1.8mm
    • Type of Filling
       Wire mesh
    • Mesh size
      50x200mm
    • Mesh Wire Diameter
      5.0mm
    • Post Height
      270mm
    • Post Diameter
      80x80mm
    • Post Thickness
      2.0mm
    • Full Size
      400x200cm
    • Package
      Carton or Pallet
    •
    •

    •

    •



    DESCRIPTION
    • Square posts and frame
    • Width: 400 cm and Height: 200cm
    • Technical Method : Galvanized with powder coating Finish
    • Package : Carton or Pallet, according to customers’ request.
    • Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

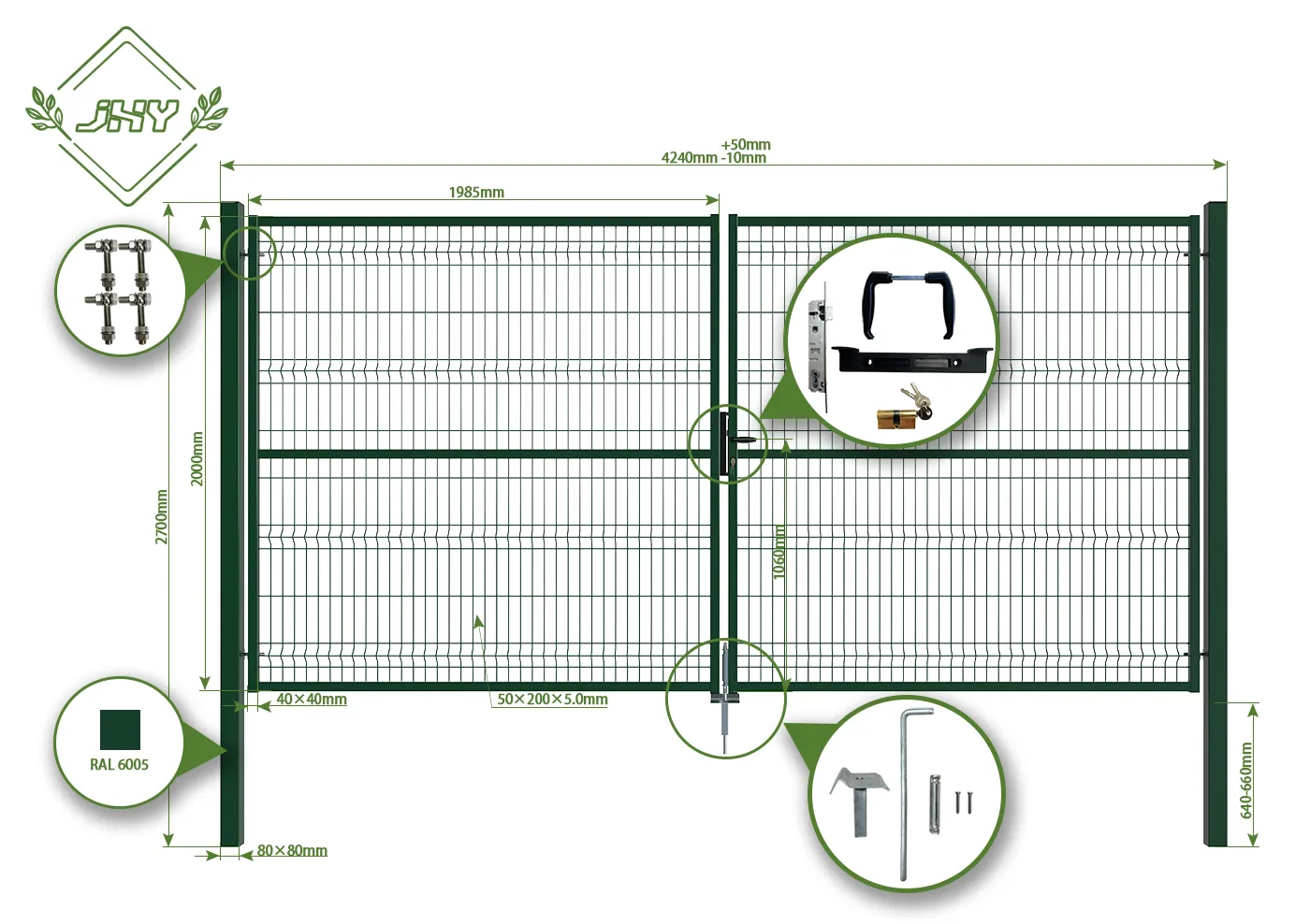

    TECHNICAL DIAGRAM









    ABOUT OUR PRODUCTS



    JHY manufactures 3D Fencing Garden Gates for you. 3D Fencing Garden Gates are a kind of garden gate, which the gate frame is filled by welded wire fence panel. There are many kinds of welded wire fence panel infill, if you divide it by wire, there are 2D Mesh Fencing Garden Gates, and 656 2D Mesh Fencing Garden Gates. If you distinguish it by mesh surface, you can find flat Fencing Garden Gates and Fencing Garden Gates bending on the horizontal wire direction. Here we are talking about the 3D Fencing Garden Gates with bending infill. Its frame and post are usually square pipes. The 3D wire fence panel is welded on the front side of the frame, unlike the other gates, because most garden gate’s infills are welded in the middle of the gate frame. This 3D Fencing Garden Gate’ best partner is 3D fence, but it can also match the other welded wire fence panels.

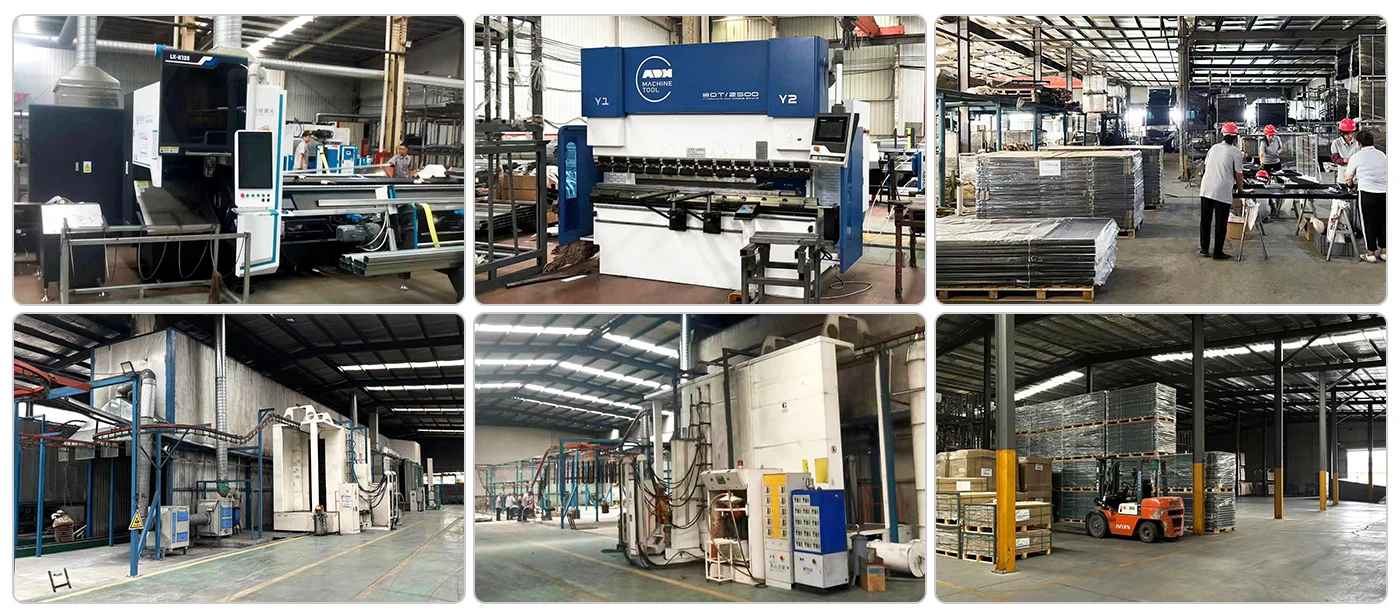

    OUR WORKSHOP
    Mesh Gates Workshop.webp

    If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.
