3D FENCING GARDEN GATE WIDTH 100CM & HEIGHT 200CM GREEN & GREY SQUARE POST & FRAME

Square posts and frame
Width: 100 cm and Height: 200cm
Technical Method : Galvanized with powder coating Finish
Package : Carton or Pallet, according to customers’ request
Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

TECHNICAL DATA

RAL

6005 /7016
Material

Galvanized steel and Powder Coating
Frame Size

100x200cm
Frame Diameter

40x40mm
Frame Thickness

1.8mm
Type of Filling

Wire mesh
Mesh size

50x200mm
Mesh Wire Diameter

5.0mm
Post Height

270cm
Post Diameter

60x60mm
Post Thickness

2.0mm
Full Size

100x200cm
Package

Carton or Pallet

DESCRIPTION

Square posts and frame
Width: 100 cm and Height: 200cm
Technical Method : Galvanized with powder coating Finish
Package : Carton or Pallet, according to customers’ request
Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

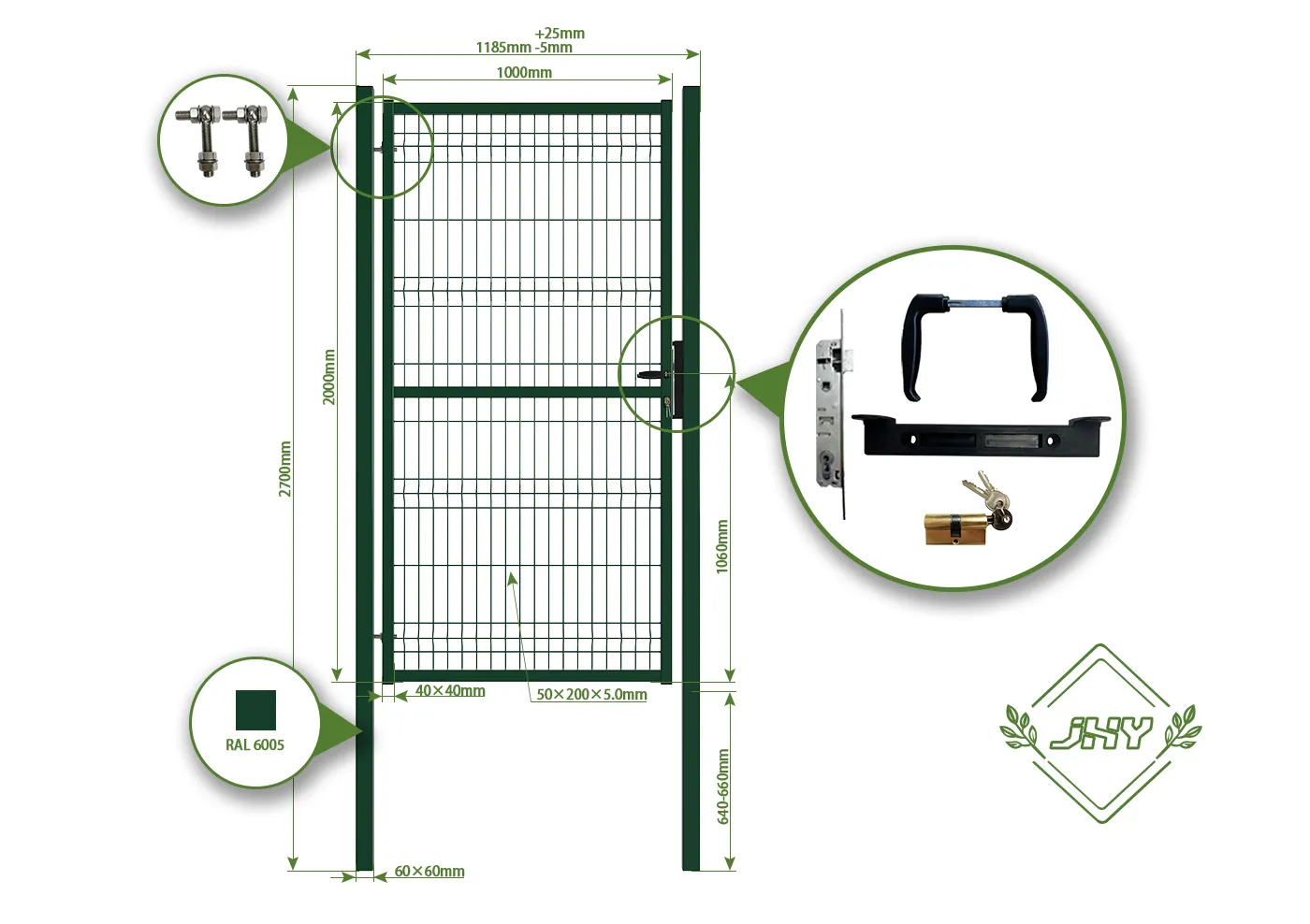

TECHNICAL DIAGRAM

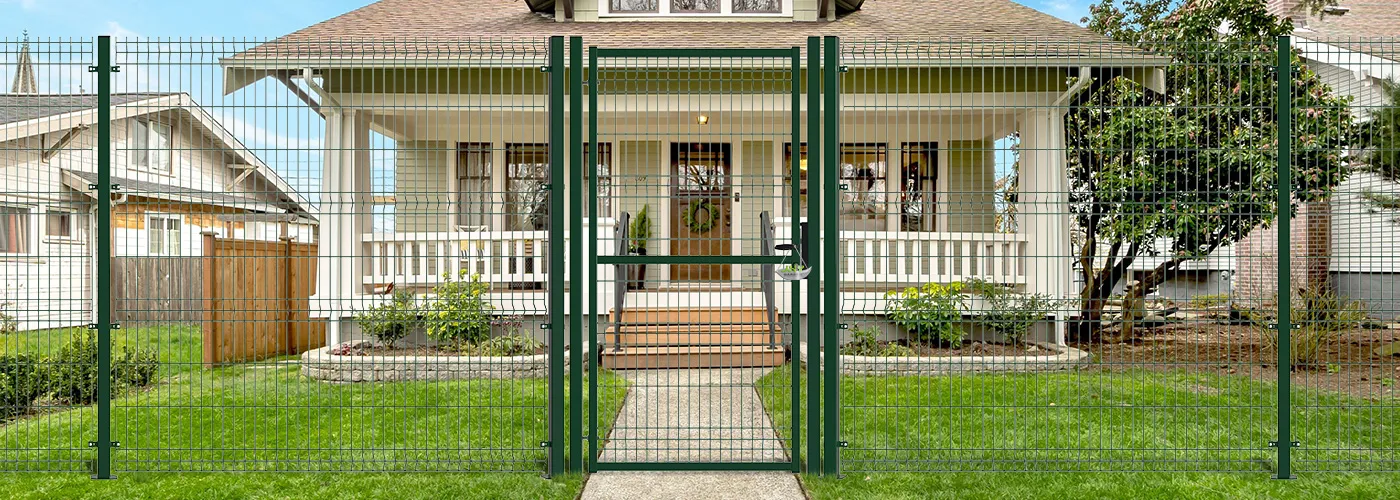

APPLICATION

DOWNLOAD AND INSTALL PROCEDURE

ABOUT OUR PRODUCTS

JHY manufactures 3D Fencing Garden Gates for you. 3D Fencing Garden Gates are a kind of garden gate, which the gate frame is filled by welded wire fence panel. There are many kinds of welded wire fence panel infill, if you divide it by wire, there are 2D Mesh Fencing Garden Gates, and 656 2D Mesh Fencing Garden Gates. If you distinguish it by mesh surface, you can find flat Fencing Garden Gates and Fencing Garden Gates bending on the horizontal wire direction. Here we are talking about the 3D Fencing Garden Gates with bending infill. Its frame and post are usually square pipes. The 3D wire fence panel is welded on the front side of the frame, unlike the other gates, because most garden gate’s infills are welded in the middle of the gate frame. This 3D Fencing Garden Gate’ best partner is 3D fence, but it can also match the other welded wire fence panels.

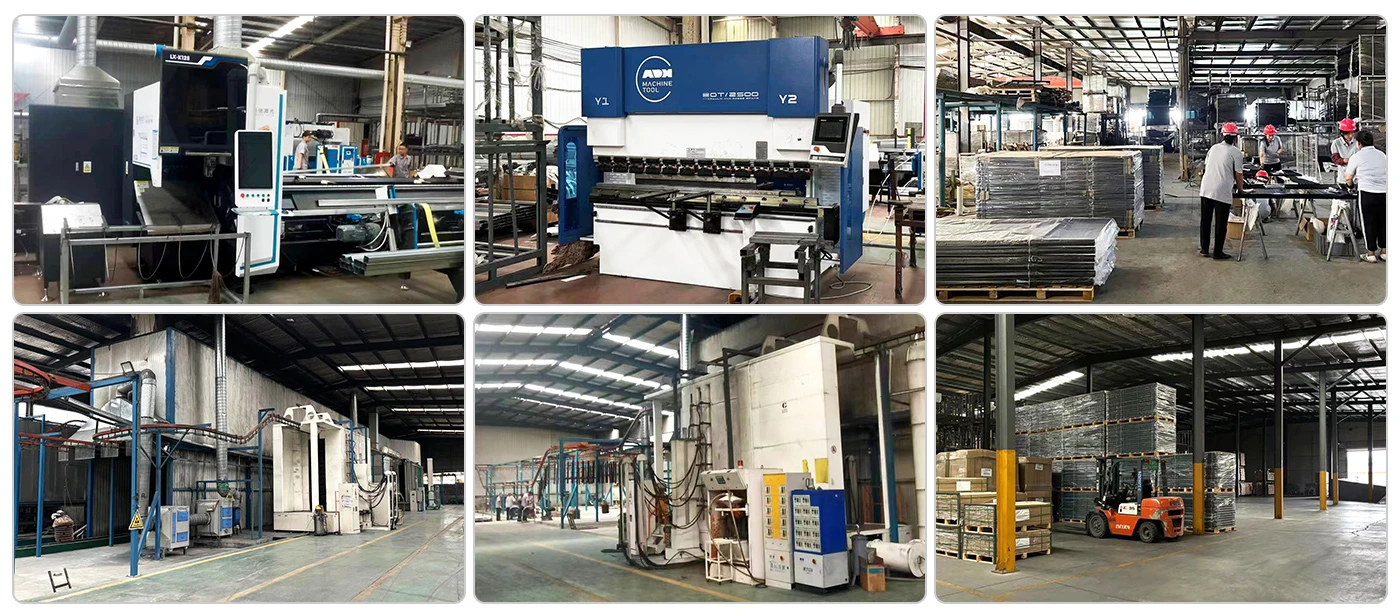

OUR WORKSHOP
