    Mesh Gates
    • 2D Fencing Garden Gate 3000×1600mm.webp1
      Grey
    • 2D Fencing Garden Gate 3000×1600mm.webp1
      Green

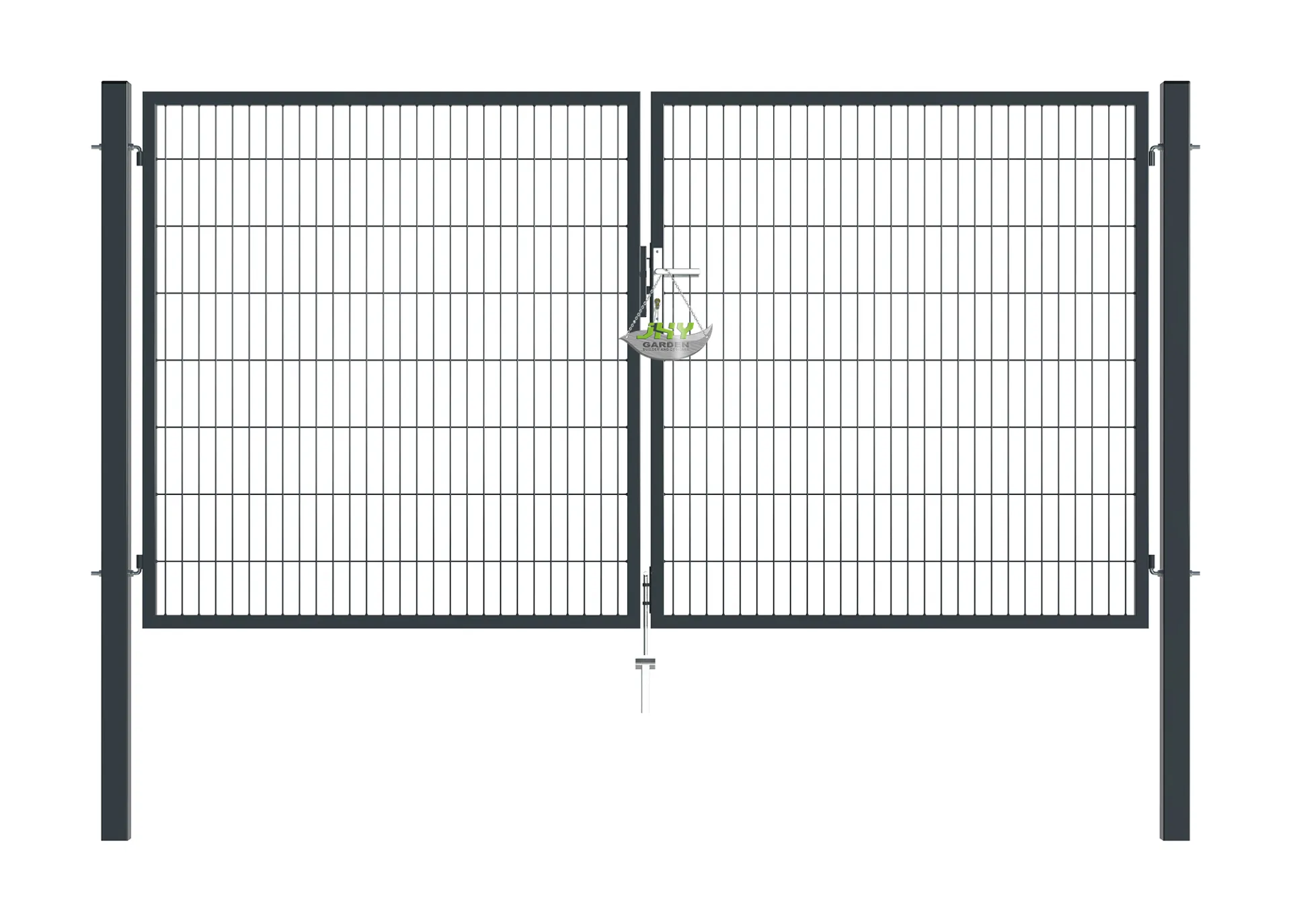

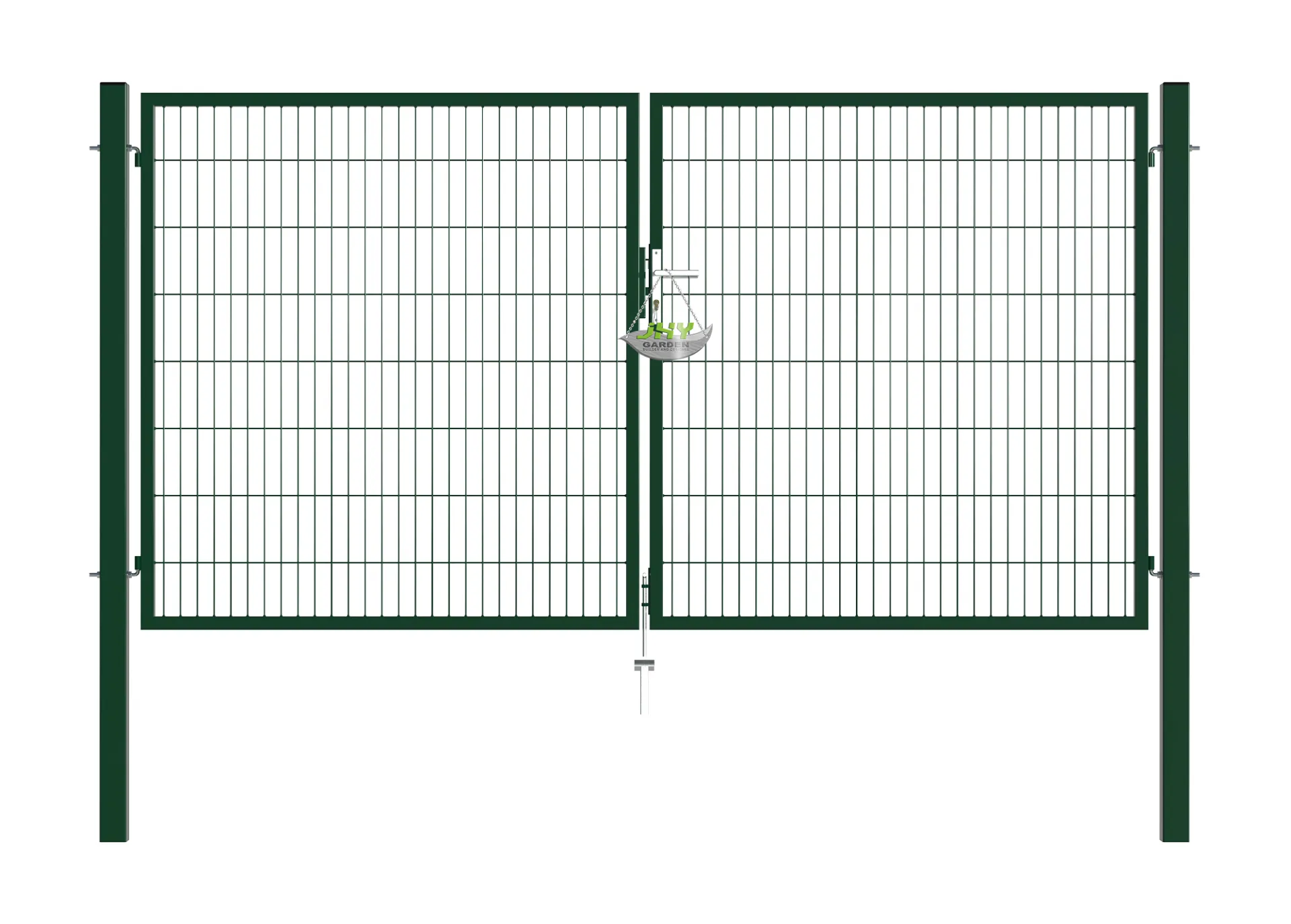

    2D MESH FENCING GARDEN GATES WIDTH 300CM & HEIGHT 160CM GREEN & GREY SQUARE POST & FRAME

    Square posts and frame
    Width: 300 cm and Height: 160cm
    Technical Method : Galvanized with powder coating Finish
    Package : Carton or Pallet, according to customers’ request.
    Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

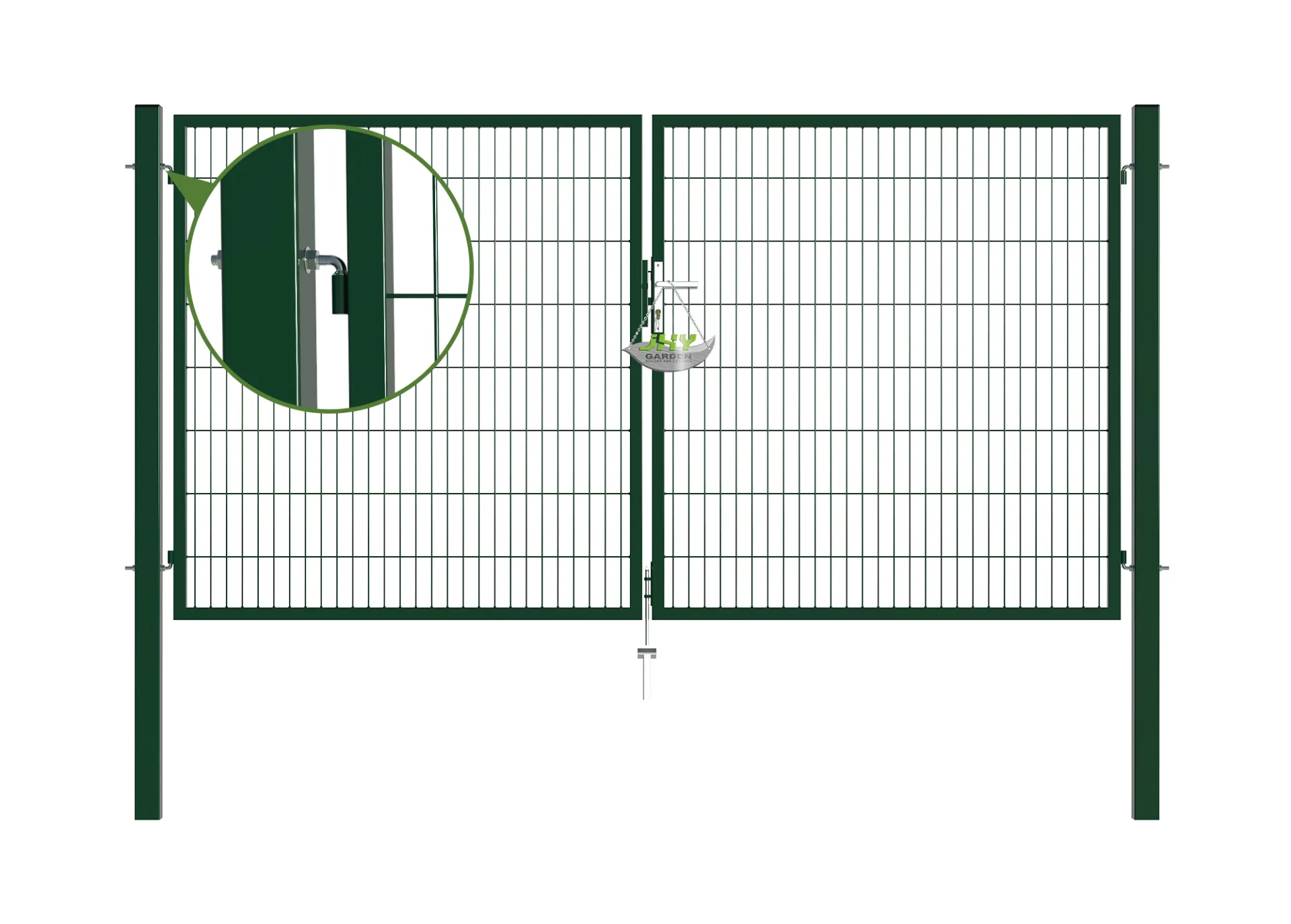

    2D Fencing Garden Gate hinge 3000×1600.webp1

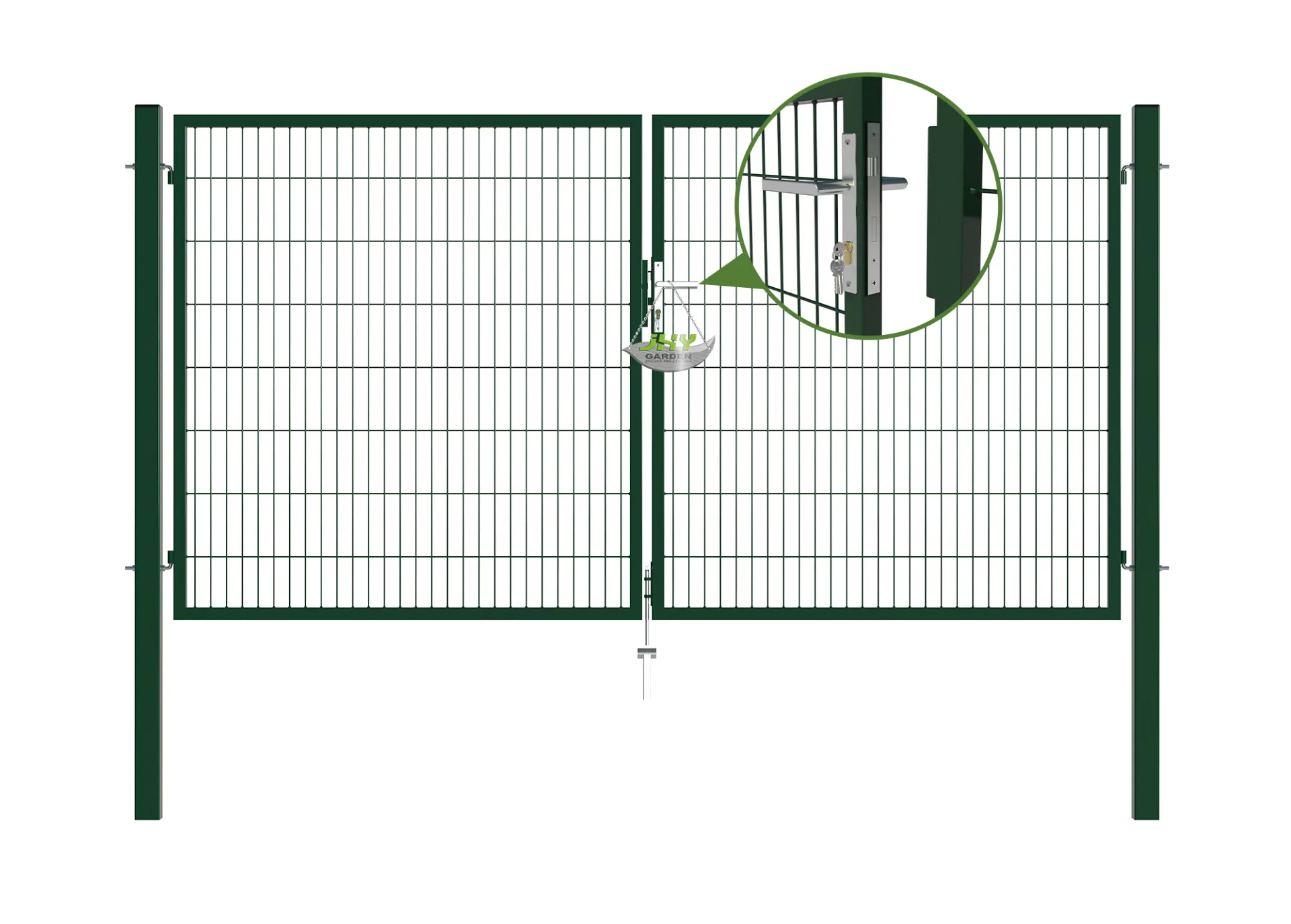

    2D Fencing Garden Gate lock 3000×1600.webp1
    2D Fencing Garden Gate mesh 3000×1600.webp1

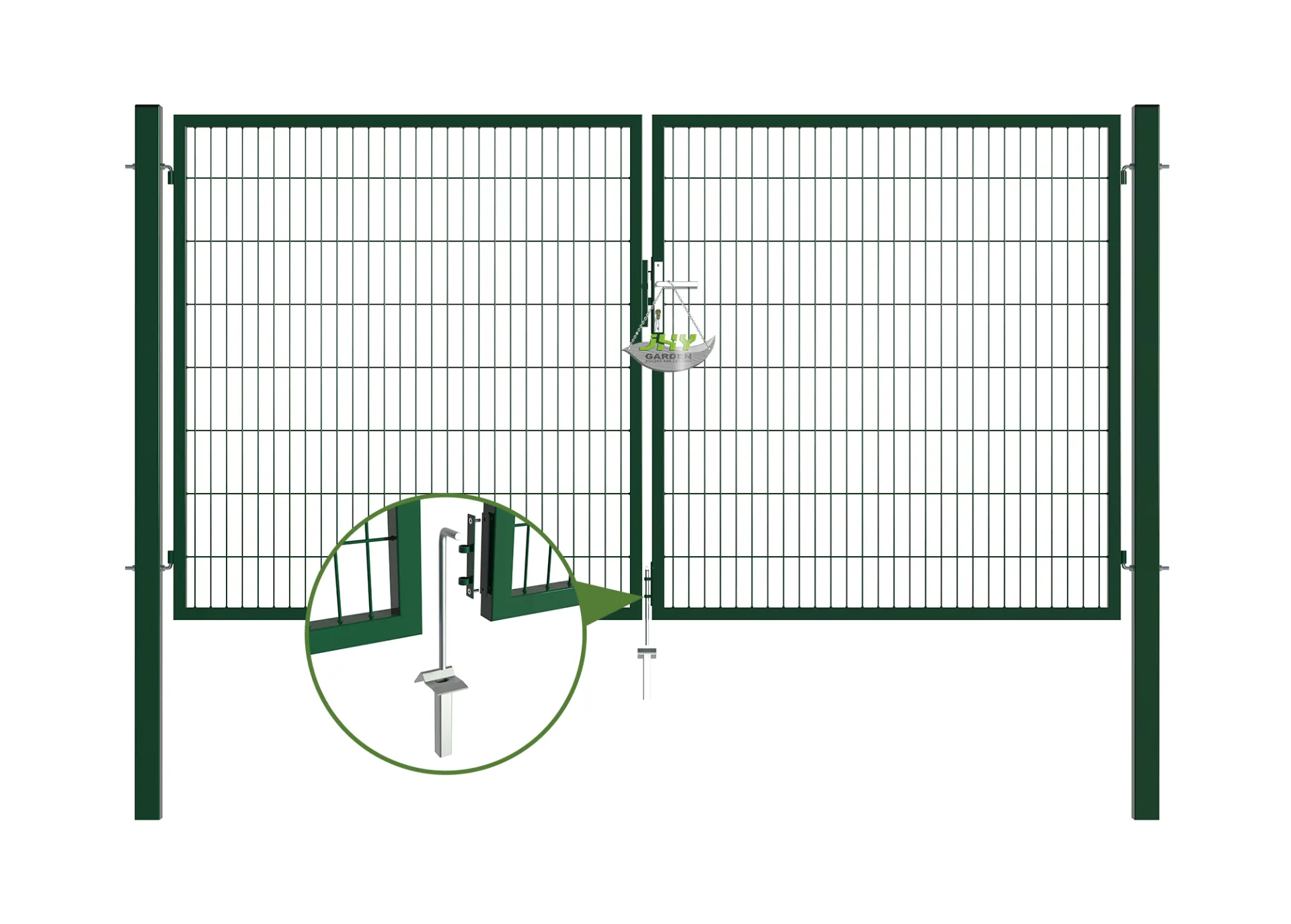

    2D Fencing Garden Gate stopper 3000×1600.webp1
    • Technical
    • Description
    • Technical Parameters
    • Assembly
    • Client's Feedback
    TECHNICAL DATA
    • RAL
       6005 /7016
    • Material
       Galvanized steel and Powder Coating
    • Frame Size
      147.5x160cm x2pcs
    • Frame Diameter
      40x40mm
    • Frame Thickness
      1.5mm
    • Type of Filling
      Wire mesh
    • Mesh size
      50x200mm
    • Mesh Wire Diameter
      5mm
    • Post Height
      230mm
    • Post Diameter
      80x80mm
    • Post Thickness
      2.0mm
    • Full Size
      300x160cm
    • Package
       Carton or Pallet
    •
    •



    DESCRIPTION
    • Square posts and frame
    • Width: 300 cm and Height: 160cm
    • Technical Method : Galvanized with powder coating Finish
    • Package : Carton or Pallet, according to customers’ request.
    • Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.



    TECHNICAL DIAGRAM









    ABOUT OUR PRODUCTS



    JHY manufactures 2D Mesh Fencing Garden Gates for you. 2D Mesh Fencing Garden Gates are a kind of garden gate, which the gate frame is filled by welded wire fence panel. There are many kinds of welded wire fence panel infill, if you divide it by wire, there are single-wire welded wire gates, and double wire welded wire gates. If you distinguish it by mesh surface, you can find flat Fencing Garden Gates and Fencing Garden Gates bending on the horizontal wire direction. Here we are talking about the 2D Mesh Fencing Garden Gates with single-wire welded wire. Except for the traditional wire mesh garden gates, JHY began to produce 2D Mesh Fencing Garden Gates in 2015. Till now, we have helped our customers finished more than 50000 sets of 2D Mesh Fencing Garden Gates. JHY is familiar with the online store's product quality and packing requirements to provide better 2D Mesh Fencing Garden Gates for you.





    OUR WORKSHOP
    Mesh Gates Workshop.webp
