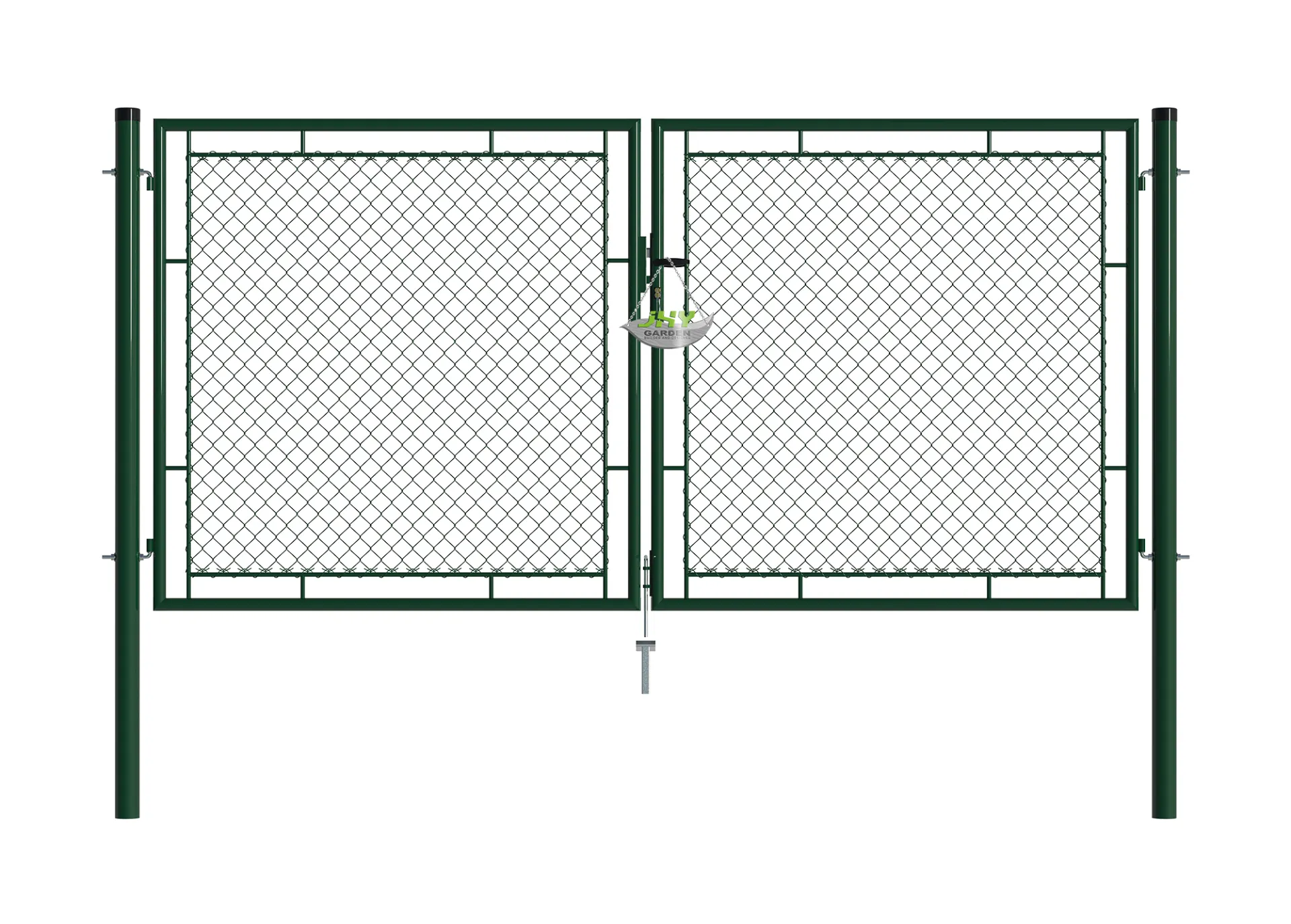

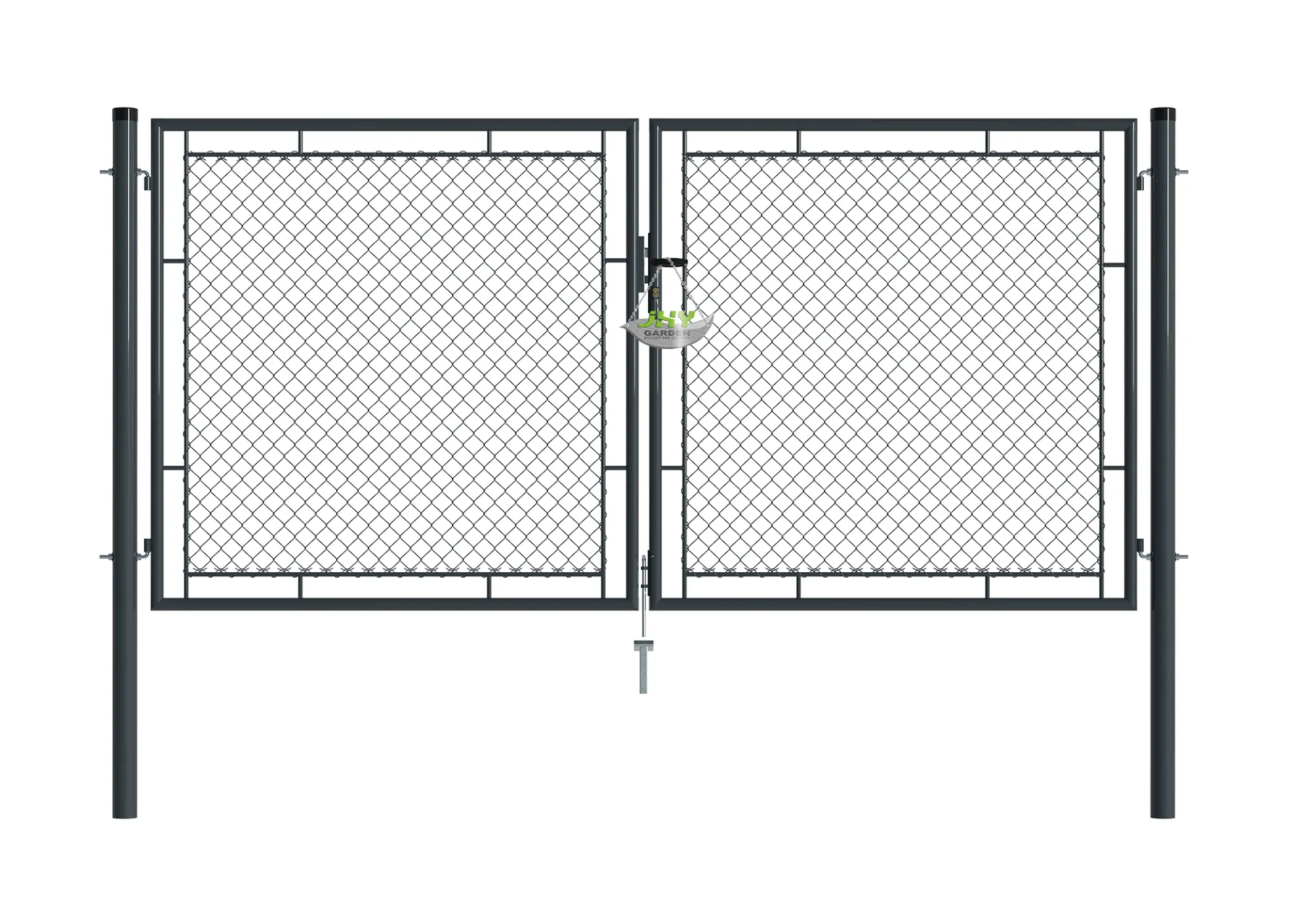

CHAIN LINK FENCING GARDEN GATE WIDTH 300CM & HEIGHT 150CM GREEN & GREY SQUARE POST & FRAME

Round posts and frame
Width: 300 cm and Height: 150cm
Technical Method : Galvanized with powder coating Finish
Package : Carton or Pallet, according to customers’ request.
Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

TECHNICAL DATA

RAL

6005 /7016
Material

Galvanized steel and Powder Coating
Frame Size

141x150cm x2pcs
Frame Diameter

Ø40mm
Frame Thickness

1.2mm
Type of Filling

Wire mesh
Mesh size

50x50mm
Mesh Wire Diameter

4.0mm
Post Height

210mm
Post Diameter

Ø76mm
Post Thickness

1.8mm
Full Size

300x150cm
Package

Carton or Pallet

DESCRIPTION

Round posts and frame
Width: 300 cm and Height: 150cm
Technical Method : Galvanized with powder coating Finish
Package : Carton or Pallet, according to customers’ request.
Service : 3D modeling, Technical drawing, instruction book, video of installation,ect.

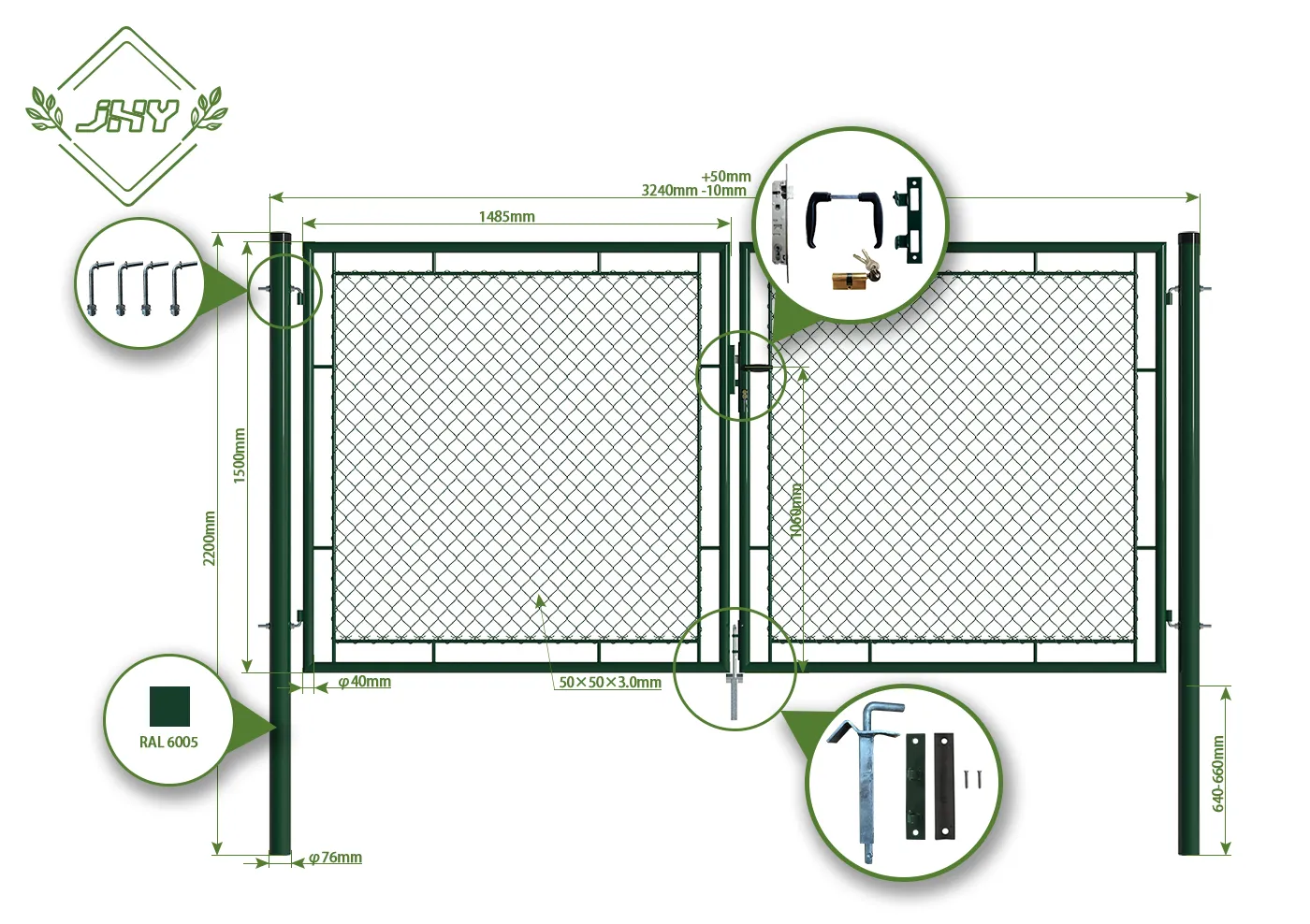

TECHNICAL DIAGRAM

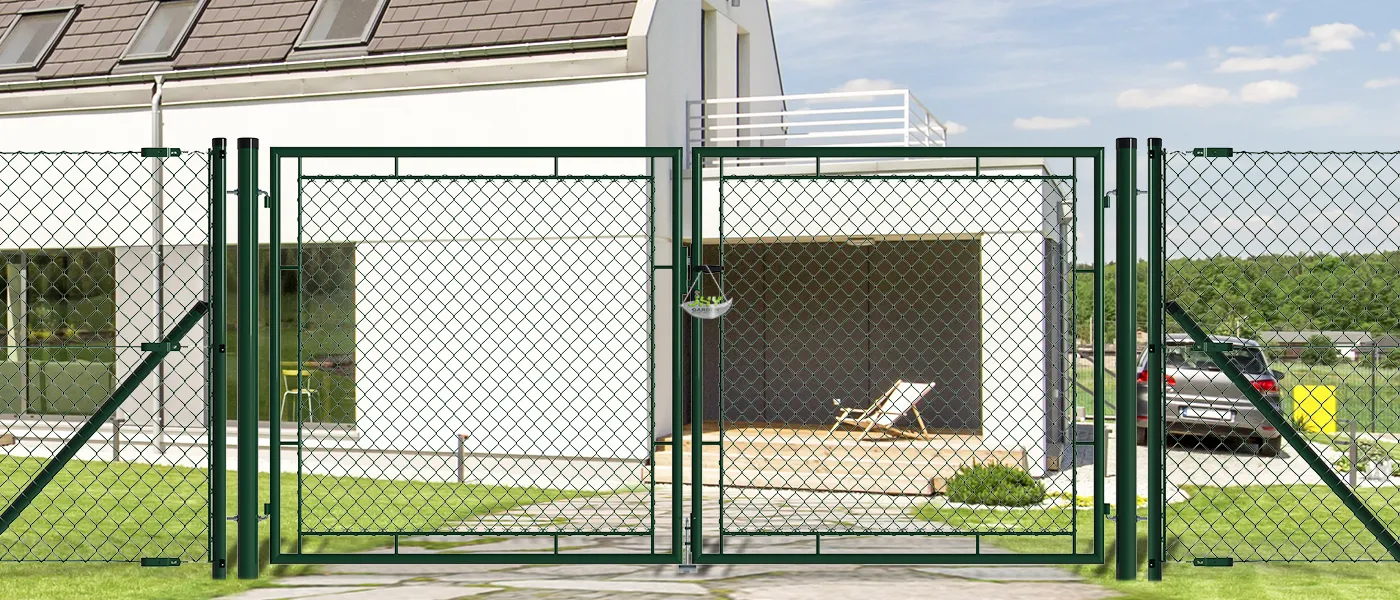

APPLICATION

DOWNLOAD AND INSTALL PROCEDURE

ABOUT OUR PRODUCTS

Chain Link Fencing Garden Gates usually match the chain-link fence to form a complete fence system. The other mesh fence can also work with it to protect the owner's property. The Chain Link Fencing Garden Gate is prevalent in the Czech Republic market. JHY manufactures full-size Chain Link Fencing Garden Gates, whether wide or single garden gates. We manufacture the standard size, but also, you can custom your size and details. Chain Link Fences play a significant role in the mesh fence series to protect your private property, and Chain Link Fencing Garden Gates as the most matching parts will become the first choice for it. Even if not to match the Chain Link Fence, let it work with a concrete wall; it can also show you its good performance. Its nice appearance and competitive price will attract you to take it.
